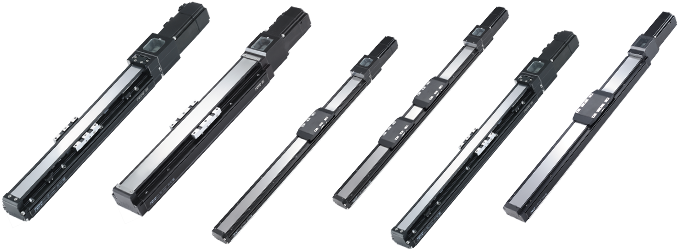

Ball Screw Linear Actuator

When it comes to achieving precise and reliable linear motion on a budget, look no further than the GLTH Series Electric Ball Screw Actuator. With its winning combination of affordability, performance, and versatility, it's the smart choice for your next project or application. Unlock the power of precision without breaking the bank with the Economical Series.

These actuators find applications in various industries such as robotics, automation, CNC machinery, aerospace, medical devices, and more, where precise and controlled linear motion is required.

Designed with space-saving in mind, the GLTH Series boasts a compact and lightweight construction without compromising on performance. This makes it suitable for installations where space is limited or weight constraints are a concern.

Features

The Economical Series offers an unbeatable combination of performance and affordability
Stepper or Actuator with Motor can be used
Suitable for installations where space is limited or weight constraints are a concern.
Seamless integration and minimal downtime.

Applications

Circuit Board Surface Cleaning Device

Fix PLASMA onto the electric cylinder And move back and forth on conveyor To do surface cleaning for circuit boards.

Coating Device for Small Applications

Performs dispensing and rubberizing operations with costs way cheaper than One rubberizing machine and utilize Rubberizing operation on assembly line.

Cutting for Glass Substrate Boards

Combine 2 synchronous X-axis actuators With one Y-axis electric cylinders into one Package of simple cutting mechanism for Glass board.

Piling Device for Circuit Board

Combining 2 single actuators into X-Y-Z system. Which can be used in receiver mechanism for circuit board Assembly line.

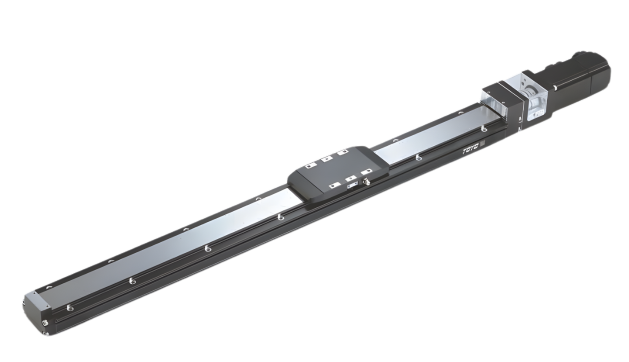

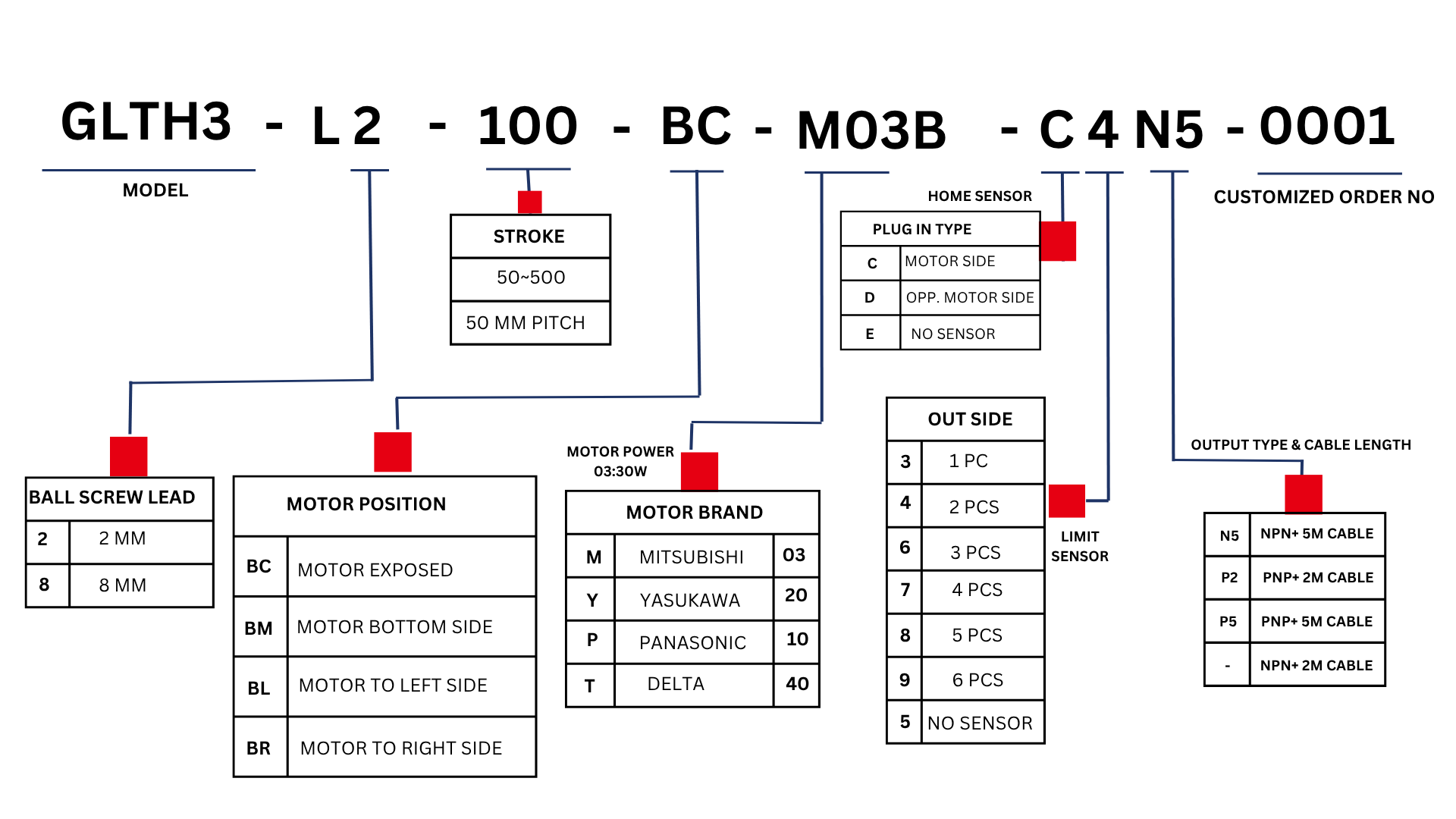

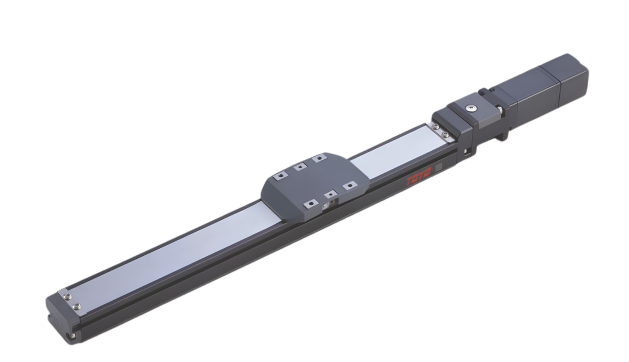

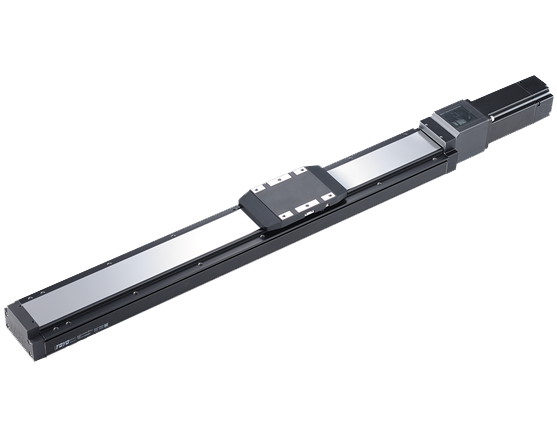

GLTH3 series

GLTH3 series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	2	8
	Maximum Rotating Speed		rpm	3600	3600
	Maximum Linear Speed		mm/s	120	480
	Maximum Payload	Horizontal	kg	13	10
	Maximum Payload	Vertical	kg	5	2
	Rated Thrust		N	352	88
	Stroke		N	50-500mm/50 increments
	Maximum Acceleration		G	0.3	0.3
	Ball Screw	Basic Dynamic Load rating Ca	N	1811	862
	Ball Screw	Basic Static Load rating Coa	N	2774	1099
	Linear Guide	Dynamic Horizontal (100 Km)	N	3144
	Linear Guide	Static Horizontal	N	6707
	Fixed Bearing	Basic Dynamic Load rating	N	2819
	Fixed Bearing	Static Load Rating Cr	N	1342
Parts	AC Servo Moter Output		W	30
	Ball Screw Ø		mm	C7Ø6
	Coupling		mm	4×5
	Home Sensor	Outside	-	T64N2 (NPN+2m cable)

GLTH5 series

GLTH5 series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	2	6	12	20
	Maximum Rotating Speed		rpm	3600	3600	3600	3600
	Maximum Linear Speed		mm/s	120	300	720	1200
	Maximum Payload	Horizontal	kg	30	25	22	10
	Maximum Payload	Vertical	kg	5	2
	Rated Thrust		N	10	6	4	3
	Stroke		mm	50-1000mm/50 increments
	Maximum Acceleration		G	0.12	0.37	0.73	1.22
	Ball Screw	Basic Dynamic Load rating Ca	N	2270	2243	1436	1384
	Ball Screw	Basic Static Load rating Coa	N	4836	3959	2441	2535
	Linear Guide	Dynamic Horizontal (100 Km)	N	6563
	Linear Guide	Static Horizontal	N	13587
	Fixed Bearing	Basic Dynamic Load rating	N	5361
	Fixed Bearing	Static Load Rating Cor	N	2880
Parts	AC Servo Moter Output		W	100
	Ball Screw Ø		mm	C7Ø10
	Coupling		mm	7×8
	Home Sensor	Outside	-	T64N2 (NPN+2m cable)

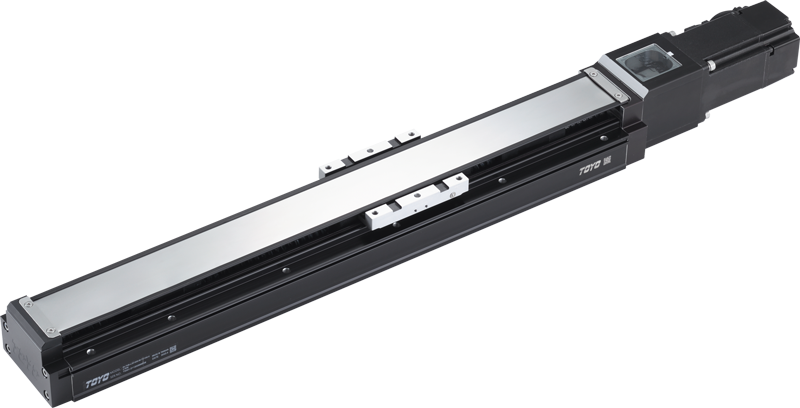

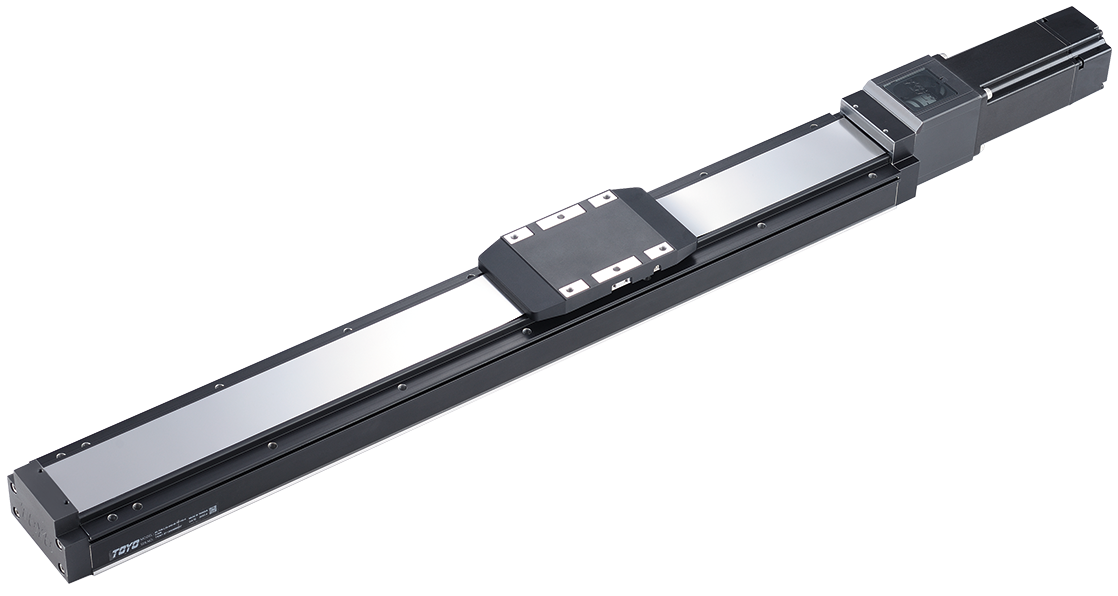

GLTH8-200W series

GLTH8-200W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	80	60	40
	Maximum Payload	Vertical	kg	15	8	5
	Rated Thrust		N	569	284	142
	Stroke		N	50-1250mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	200
	Ball Screw Ø		mm	C7Ø14/Ø11
	Coupling		mm	10×14/11
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

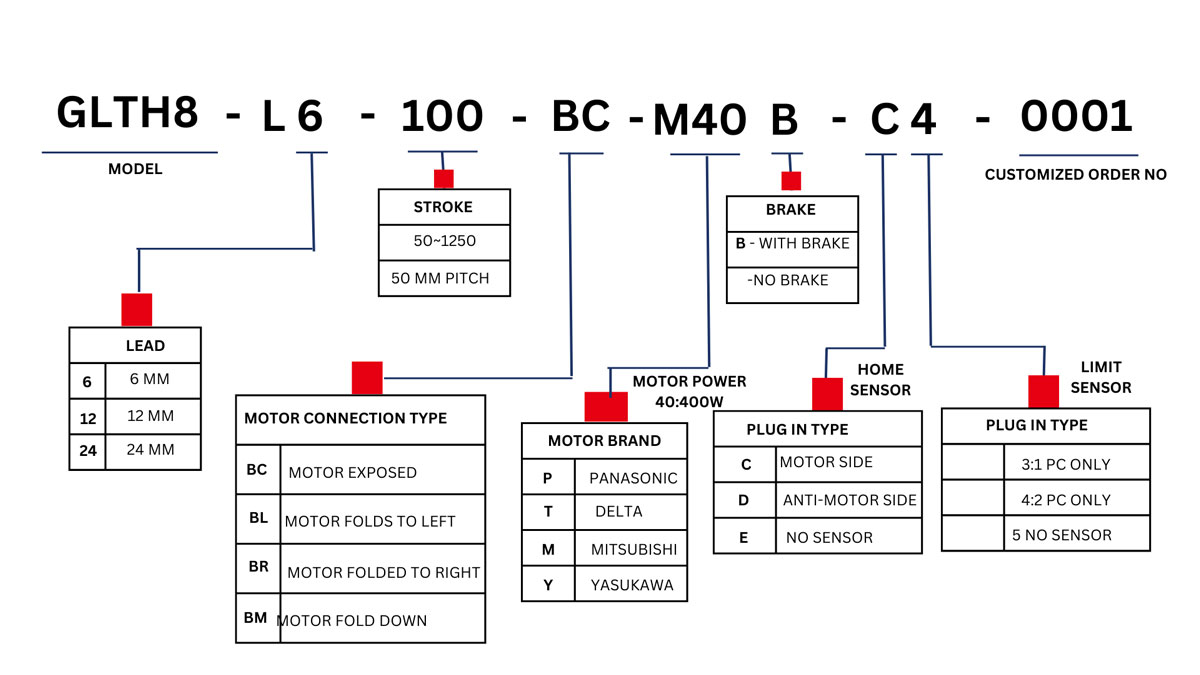

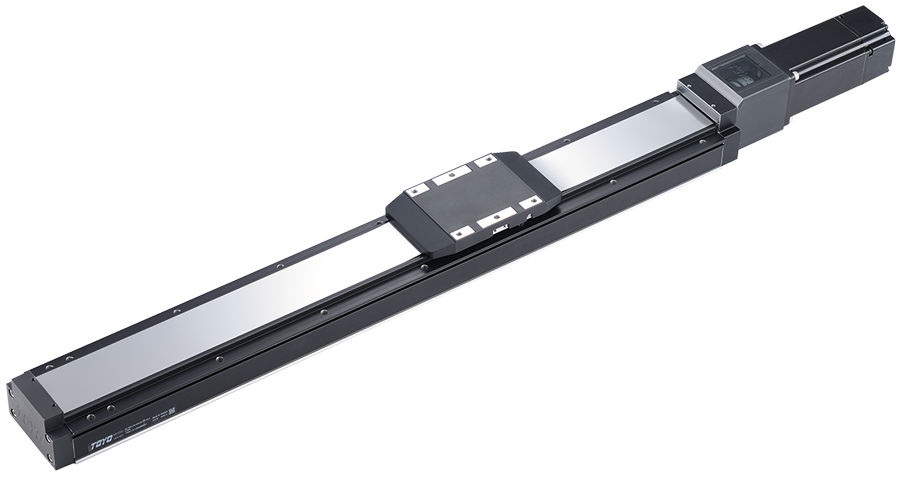

GLTH8-400W series

GLTH8-400W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	105	85	40
	Maximum Payload	Vertical	kg	30	20	10
	Rated Thrust		N	1156	578	289
	Stroke		N	50-1250mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	400
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

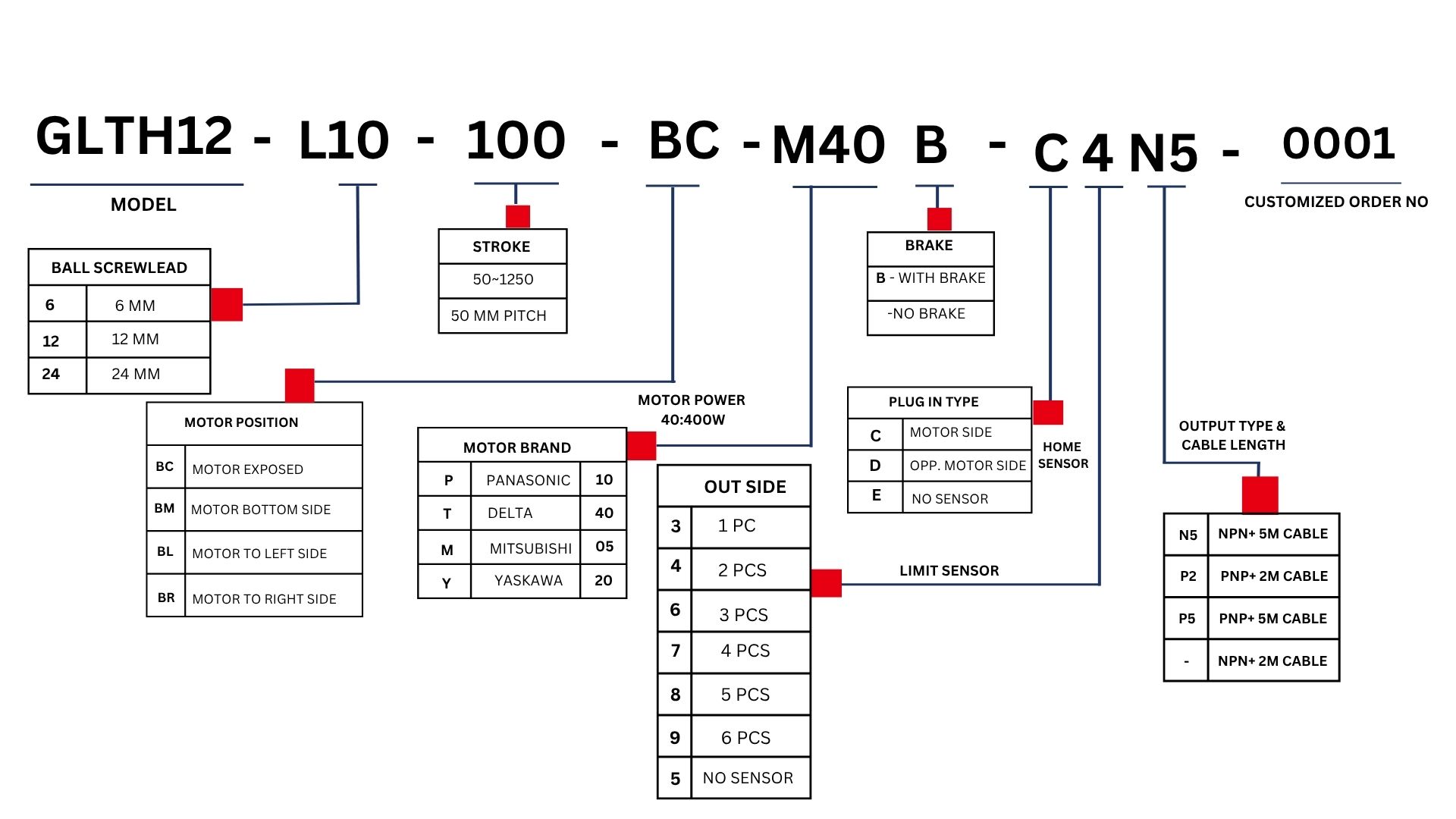

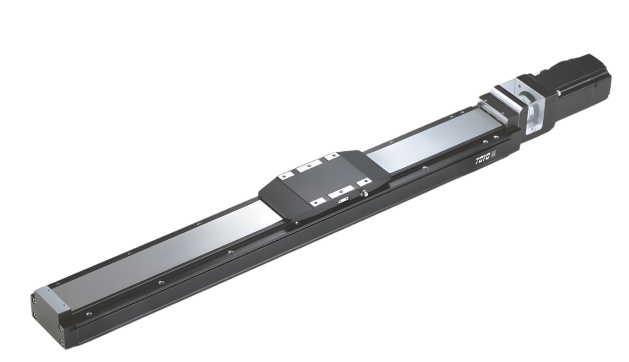

GLTH12-400W series

GLTH12-400W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	110	88	40
	Maximum Payload	Vertical	kg	30	20	10
	Rated Thrust		N	1156	578	289
	Stroke		N	50-1250mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	51128
	Linear Guide	Static Horizontal	N	84518
	Fixed Bearing	Basic Dynamic Load rating	N	2600
	Fixed Bearing	Static Load Rating Car	N	4750
Parts	AC Servo Moter Output		W	400
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

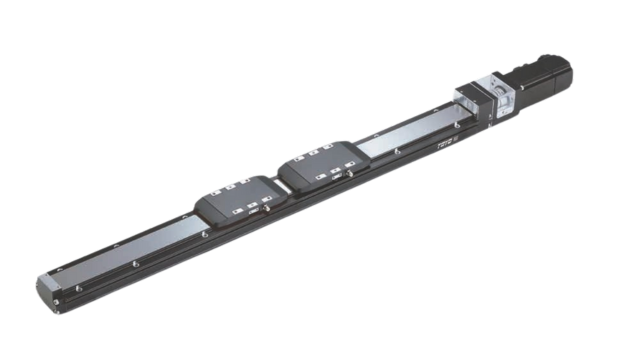

GLTH5D series

GLTH5D series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	2	6	12	20
	Maximum Rotating Speed		rpm	3600	3600	3600	3600
	Maximum Linear Speed		mm/s	120	300	720	1200
	Maximum Payload	Horizontal	kg	30	25	22	10
	Maximum Payload	Vertical	kg	10	6	4	3
	Rated Thrust		N	854	285	142	85
	Stroke		N	50-850mm/50 increments
	Maximum Acceleration		G	0.12	0.37	0.73	1.22
	Ball Screw	Basic Dynamic Load rating Ca	N	2270	2243	1436	1384
	Ball Screw	Basic Static Load rating Coa	N	4836	3959	2441	2535
	Linear Guide	Dynamic Horizontal (100 Km)	N	6563
	Linear Guide	Static Horizontal	N	13587
	Fixed Bearing	Basic Dynamic Load rating	N	5361
	Fixed Bearing	Static Load Rating Car	N	2880
Parts	AC Servo Moter Output		W	100
	Ball Screw Ø		mm	C7Ø10
	Coupling		mm	7×8
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

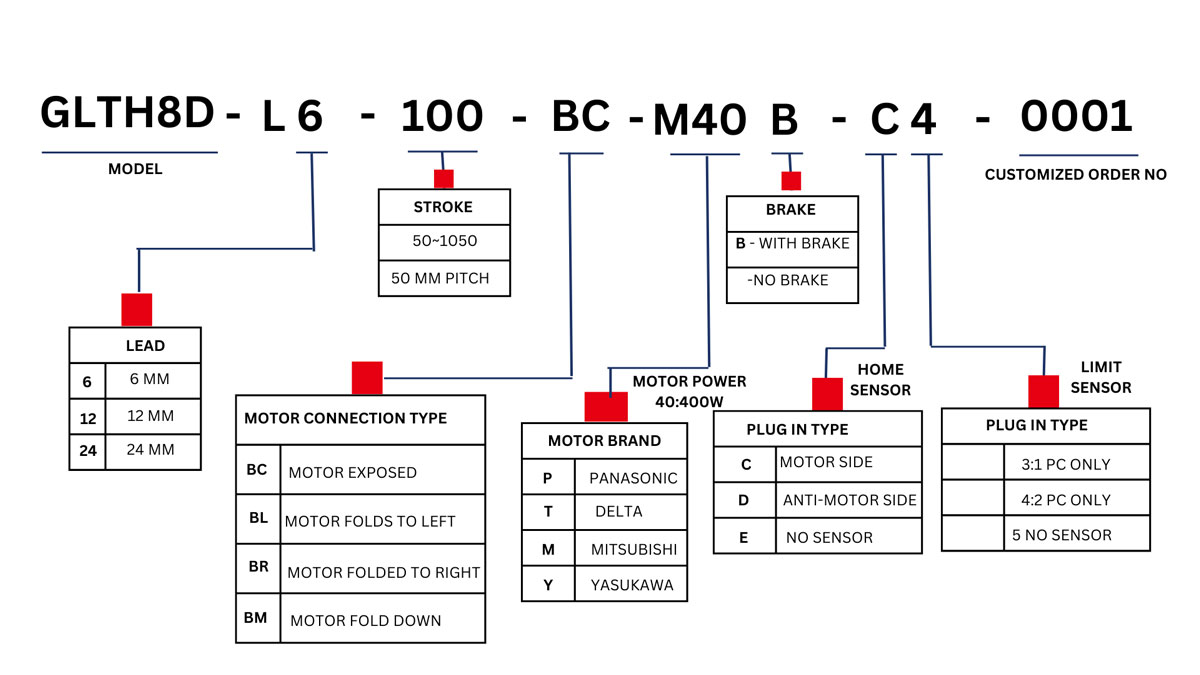

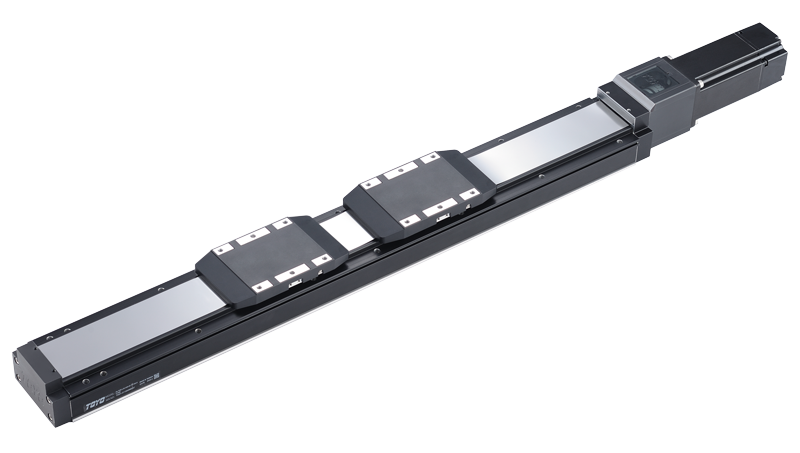

GLTH8D-200W series

GLTH8D-200W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	80	60	40
	Maximum Payload	Vertical	kg	15	8	5
	Rated Thrust		N	569	284	142
	Stroke		N	50-1050mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	200
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14/11
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

GLTH8D-400W series

GLTH8D-400W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	105	85	40
	Maximum Payload	Vertical	kg	30	20	10
	Rated Thrust		N	1156	578	289
	Stroke		N	50-1050mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	400
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

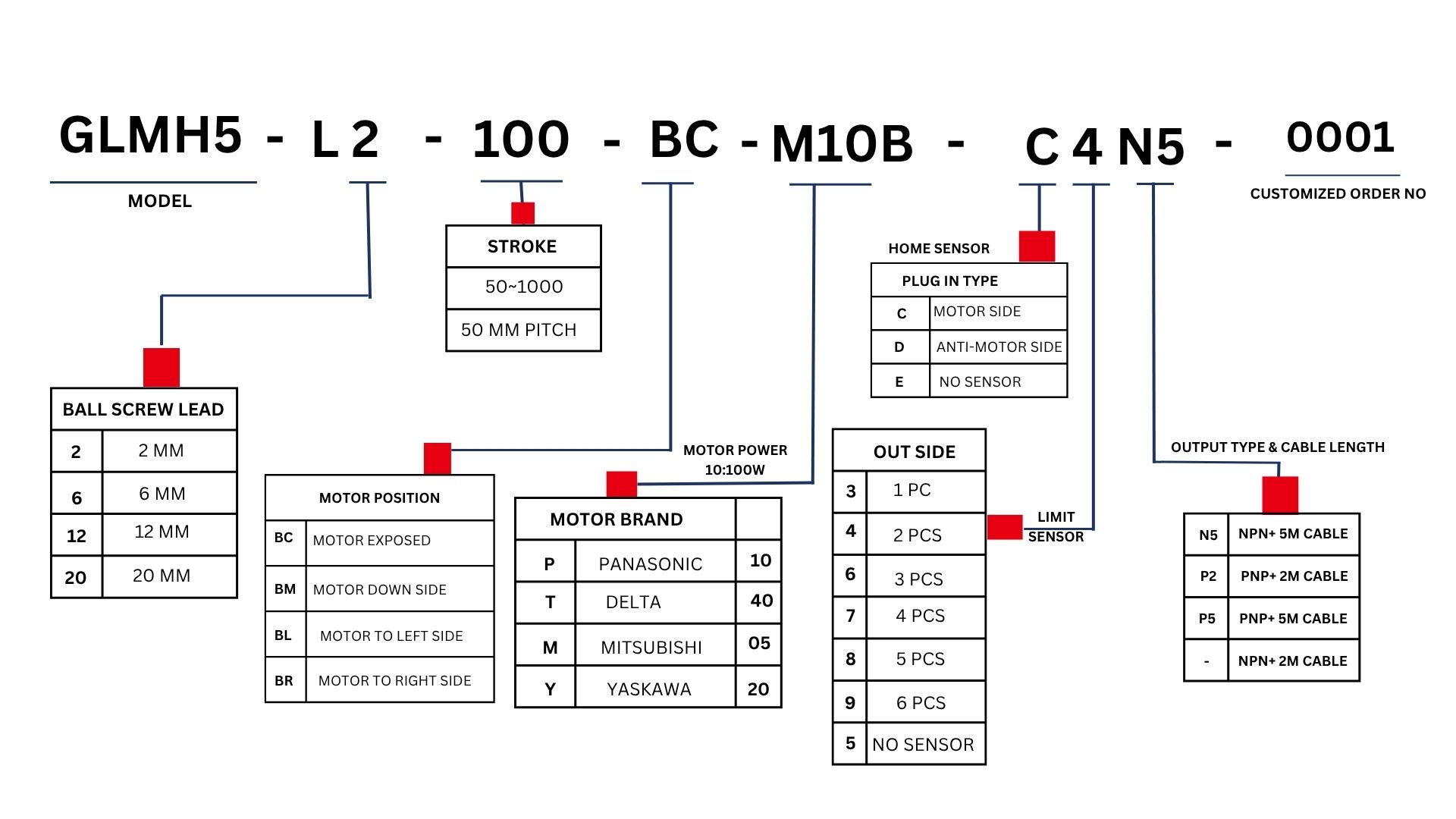

GLMH5 series

GLMH5 series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	2	6	12	20
	Maximum Rotating Speed		rpm	3600	3600	3600	3600
	Maximum Linear Speed		mm/s	120	300	720	1200
	Maximum Payload	Horizontal	kg	30	25	22	10
	Maximum Payload	Vertical	kg	10	6	4	3
	Rated Thrust		N	854	285	142	85
	Stroke		N	50-1000mm/50 increments
	Maximum Acceleration		G	0.12	0.37	0.73	1.22
	Ball Screw	Basic Dynamic Load rating Ca	N	2270	2243	1436	1384
	Ball Screw	Basic Static Load rating Coa	N	4836	3959	2441	2535
	Linear Guide	Dynamic Horizontal (100 Km)	N	6563
	Linear Guide	Static Horizontal	N	13587
	Fixed Bearing	Basic Dynamic Load rating	N	5361
	Fixed Bearing	Static Load Rating Car	N	2880
Parts	AC Servo Moter Output		W	100
	Ball Screw Ø		mm	C7Ø10
	Coupling		mm	7×8
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

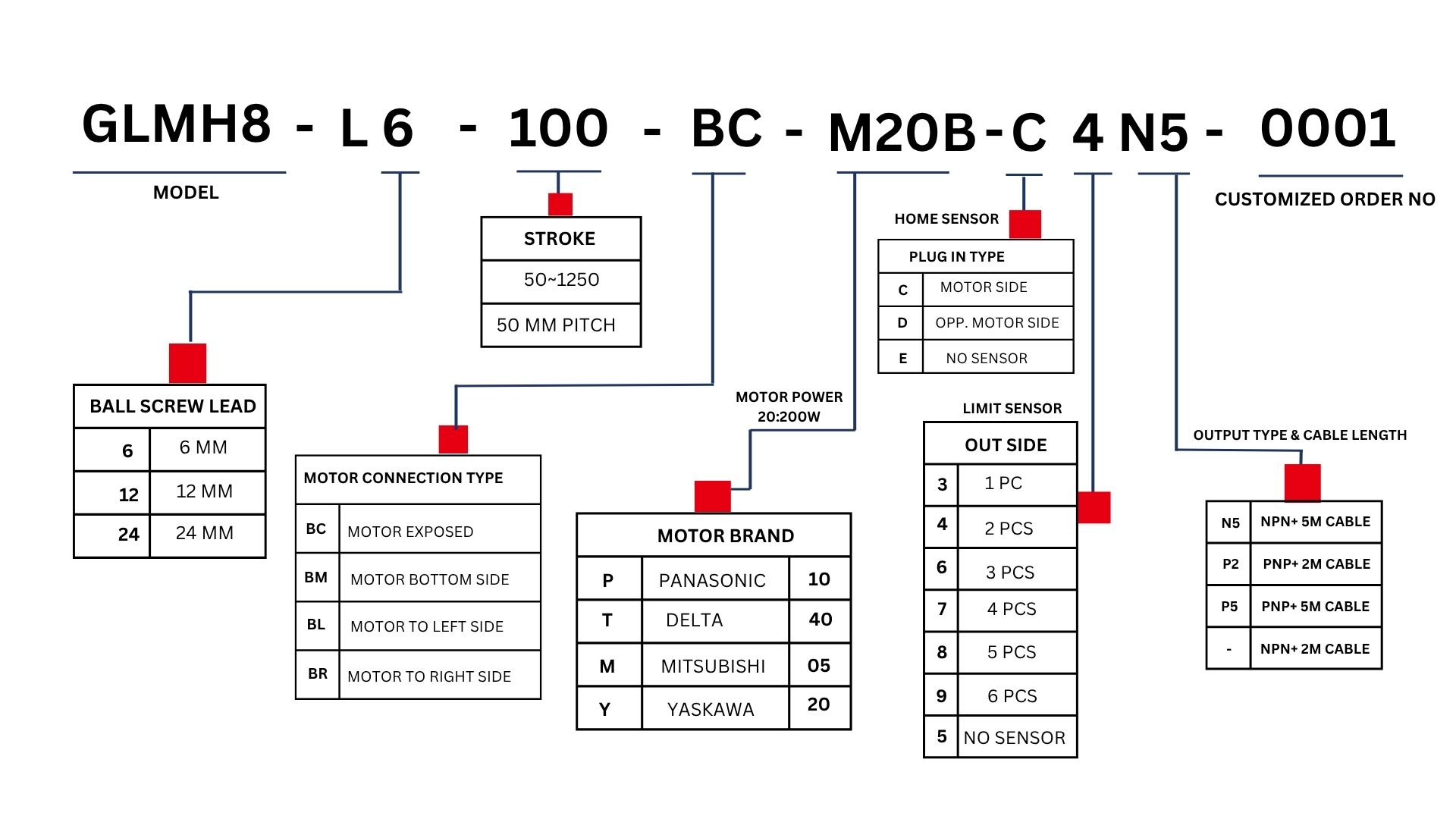

GLMH8-200W series

GLMH8-200W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	80	60	40
	Maximum Payload	Vertical	kg	15	8	5
	Rated Thrust		N	569	284	142
	Stroke		N	50-1250mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	200
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14/11
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

GLMH8-400W series

GLMH8-400W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	105	85	40
	Maximum Payload	Vertical	kg	30	20	10
	Rated Thrust		N	1156	578	289
	Stroke		N	50-1250mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	400
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

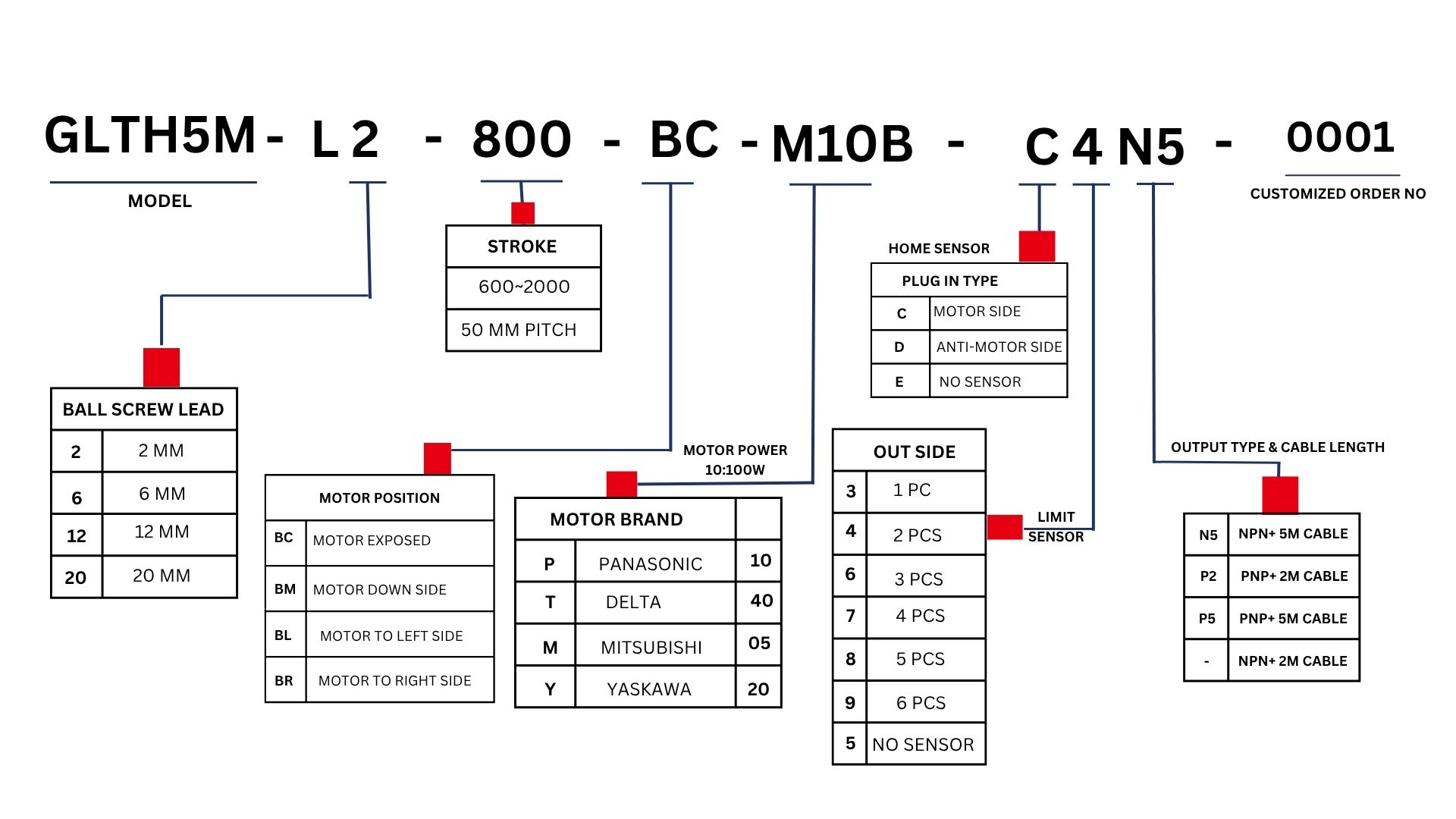

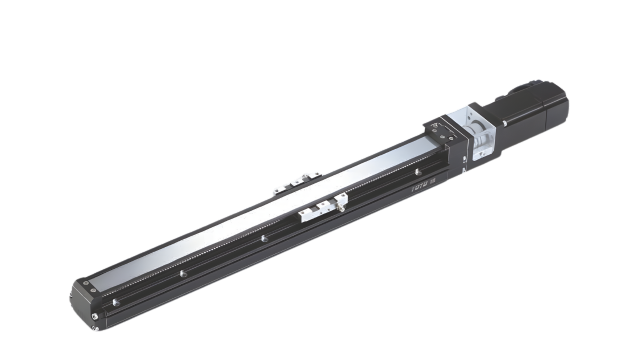

GLTH5M series

GLTH5M series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	2	6	12	20
	Maximum Rotating Speed		rpm	3600	3600	3600	3600
	Maximum Linear Speed		mm/s	120	360	720	1200
	Maximum Payload	Horizontal	kg	30	25	22	10
	Maximum Payload	Vertical	kg	10	6	4	3
	Rated Thrust		N	854	284	142	85
	Stroke		N	650-2000mm/50 increments
	Maximum Acceleration		G	0.12	0.37	0.73	1.22
	Ball Screw	Basic Dynamic Load rating Ca	N	2270	2243	1436	1384
	Ball Screw	Basic Static Load rating Coa	N	4836	3959	2441	2535
	Linear Guide	Dynamic Horizontal (100 Km)	N	6563
	Linear Guide	Static Horizontal	N	13587
	Fixed Bearing	Basic Dynamic Load rating	N	5361
	Fixed Bearing	Static Load Rating Car	N	2880
Parts	AC Servo Moter Output		W	100
	Ball Screw Ø		mm	C7Ø10
	Coupling		mm	7×8
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

GLTH8M-200W series

GLTH8M-200W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	80	60	40
	Maximum Payload	Vertical	kg	15	8	5
	Rated Thrust		N	569	284	142
	Stroke		N	700-2500mm/50 intervals (50 Increments)
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	200
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14/11
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

GLTH8M-400W series

GLTH8M-400W series specification

Performance	Repeatability		mm	+/-0.005
	Lead		mm	6	12	24
	Maximum Rotating Speed		rpm	3600	3600	3600
	Maximum Linear Speed		mm/s	360	720	1440
	Maximum Payload	Horizontal	kg	105	85	40
	Maximum Payload	Vertical	kg	30	20	10
	Rated Thrust		N	1156	578	289
	Stroke		N	700-2500mm/50 increments
	Maximum Acceleration		G	0.37	0.73	1.47
	Ball Screw	Basic Dynamic Load rating Ca	N	7733	5855	3007
	Ball Screw	Basic Static Load rating Coa	N	14200	10401	5414
	Linear Guide	Dynamic Horizontal (100 Km)	N	18601
	Linear Guide	Static Horizontal	N	34189
	Fixed Bearing	Basic Dynamic Load rating	N	8447
	Fixed Bearing	Static Load Rating Car	N	5060
Parts	AC Servo Moter Output		W	400
	Ball Screw Ø		mm	C7Ø14
	Coupling		mm	10×14
	Home Sensor	Outside	-	T64N2 (NPN+2 meters wire)

GLTB5-100W series

GLTB5-100W series specification

Performance	Repeatability		mm	+/-0.04
	Lead		mm	32
	Maximum Rotating Speed		rpm	3600
	Maximum Linear Speed		mm/s	1920
	Maximum Payload	Horizontal	kg	5
	Maximum Payload	Vertical	kg	-
	Rated Thrust		N	53
	Stroke		N	50-3000mm/50 intervals (50 Increments)
	Maximum Acceleration		G	0.65
	Belt	Tis	N	28
	Belt	Timax	N	31
Part	AC Servo Moter Output		W	100
	Skin Tightness		mm	9
	Coupling	Outside		T64N2 (NPN+2 meters wire)

GLTB8-400W series

GLTB8-400W series specification

Performance	Repeatability		mm	+/-0.04
	Lead		mm	60
	Maximum Rotating Speed		rpm	3000
	Maximum Linear Speed		mm/s	3000
	Maximum Payload	Horizontal	kg	8
	Maximum Payload	Vertical	kg	-
	Rated Thrust		N	116
	Stroke		N	50-3000mm/50 intervals (50 Increments)
	Maximum Acceleration		G	1.22
	Belt	Tis	N	37
	Belt	Timax	N	42
Part	AC Servo Moter Output		W	400
	Skin Tightness		mm	8
	Coupling	Outside		T64N2 (NPN+2 meters wire)

Ball Screw Linear Actuator

Enquiry Form
