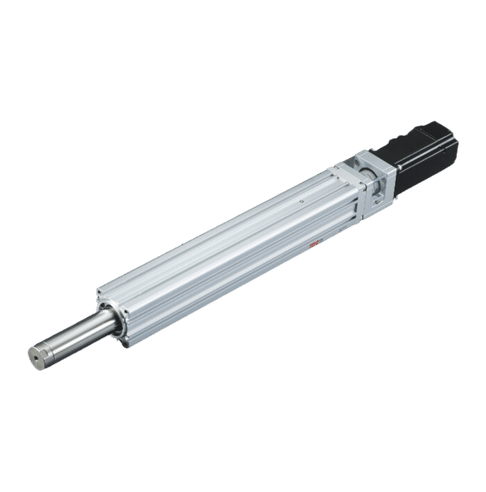

Rod Type Actuator
A rod type actuator is a type of linear actuator that converts rotational motion into linear motion. It typically consists of a rod or piston attached to a motor or other rotary actuator, which moves in and out of a cylindrical housing.
The electric motor is connected to a lead screw drive mechanism. When the motor rotates, it drives the lead screw or, converting the rotational motion into linear motion. The lead screw drive is attached to a rod or piston, which moves linearly as the lead screw rotates.
Features
- Standard stroke 50-600 mm.
- Maximum Payload upto 40 Kg
- Motor max speed 1200 rpm.
- Ensured repeatability of +/- 0.01 mm.
Applications
Positioning, Pick and place, Carrying, Press fitting
Industries
Industrial robot industry, TFT display manufacturing, Semi-conductor manufacturing, LED manufacturing, Material handling industry

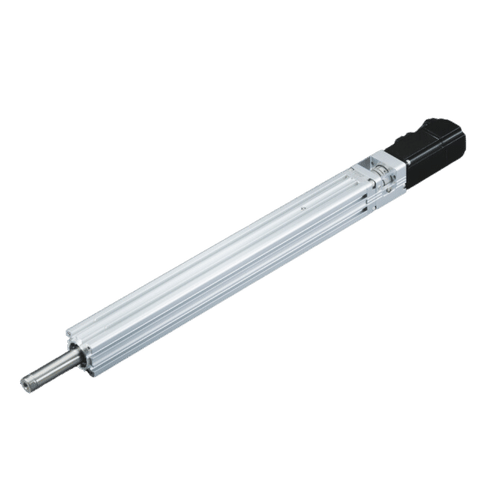

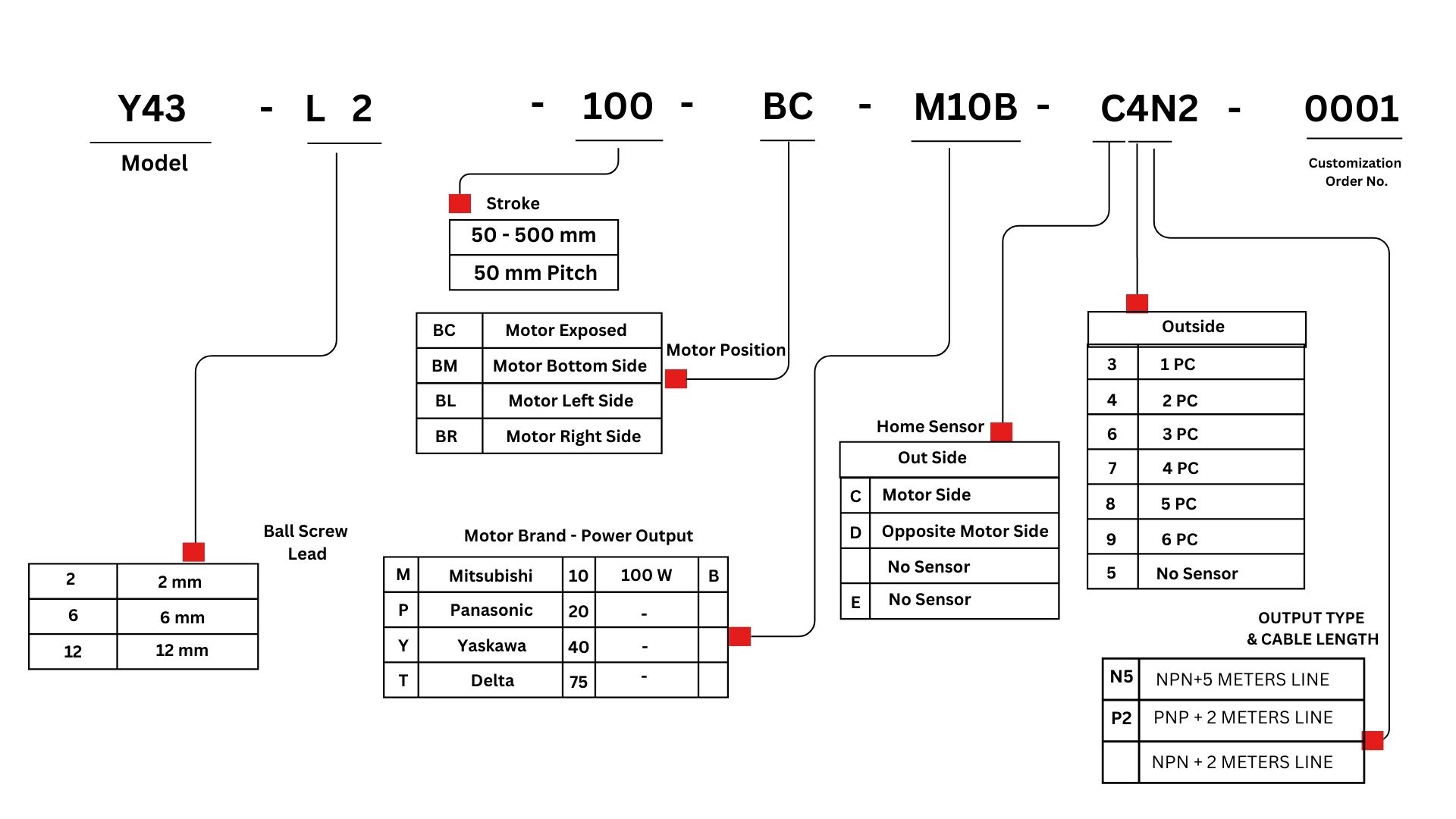

Y43 series
Y43 series specification
| Specification | Repeatability (mm) | ±0.01 | |||
|---|---|---|---|---|---|
| Lead(mm) | 2 | 6 | 12 | ||
| Maximum Rotating Speed(mm/s) | 3600 | 3600 | 3600 | ||
| Maximum Linear Speed(mm/s) | 120 | 360 | 720 | ||
| Maximum Payload | Horizontal(Kg) | 40 | 30 | 20 | |
| Vertical(Kg) | 12 | 9 | 7 | ||
| Vertical regenerative resistor(Kg) | 14 | 12 | 11 | ||
| Rated Thurst (N) | 854 | 284 | 142 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | ||||
| Maximum Acceleration(G) | 0.12 | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 2271 | 2243 | 1436 | |
| Basic Static Load rating Coa(N) | 4837 | 3959 | 2441 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 5361 | |||
| Static Load Rating Cr(N) | 2880 | ||||
| Parts | AC Servo Motor Output(w) | 100 | |||
| Ball Screw | C7⌀10 | ||||
| Home Sensor | Outside | CS-6T | |||

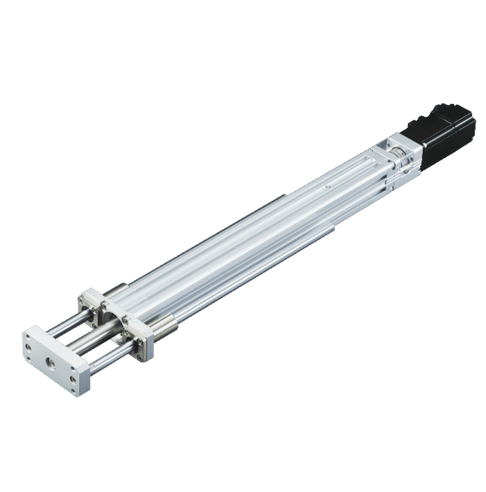

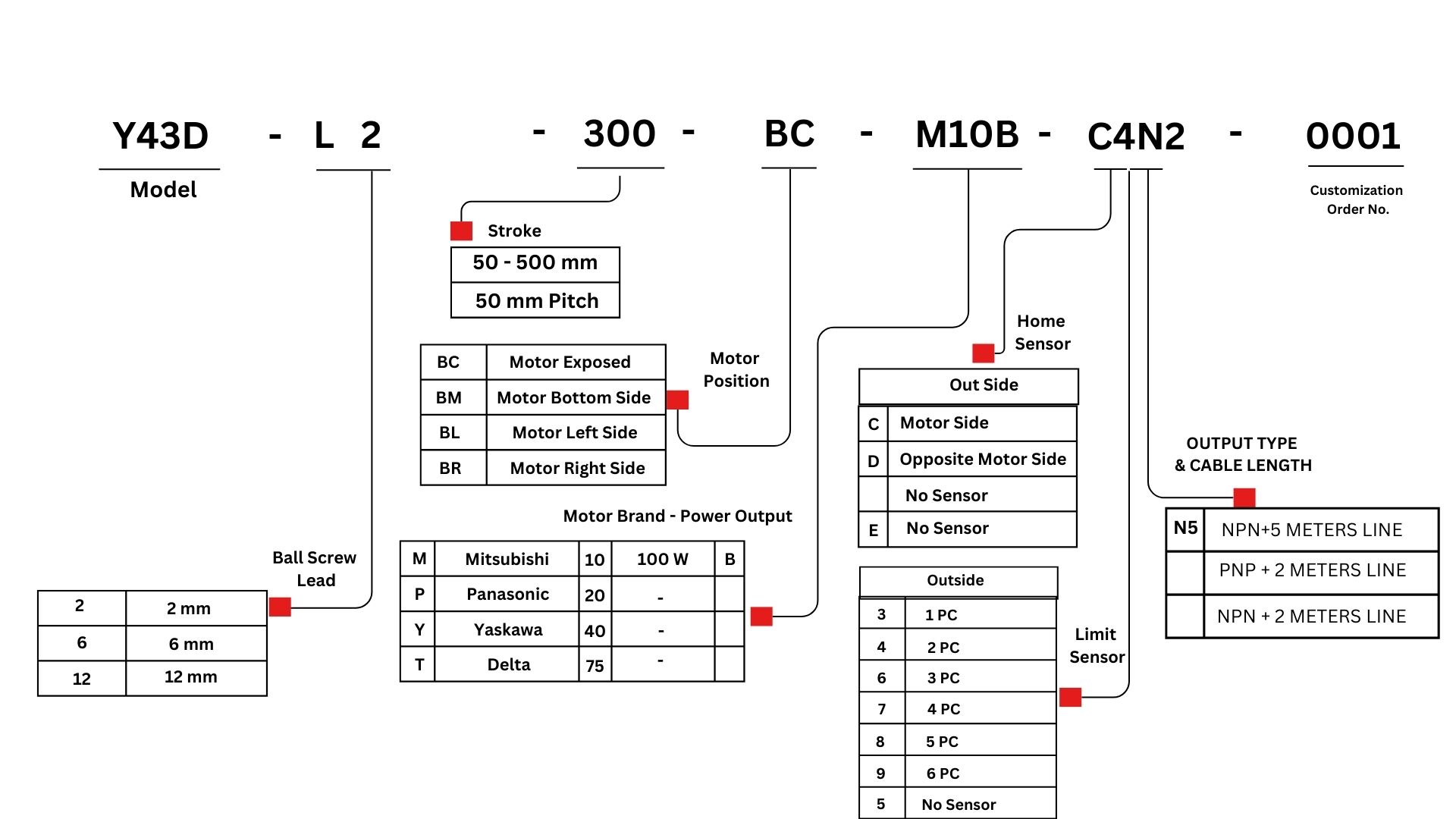

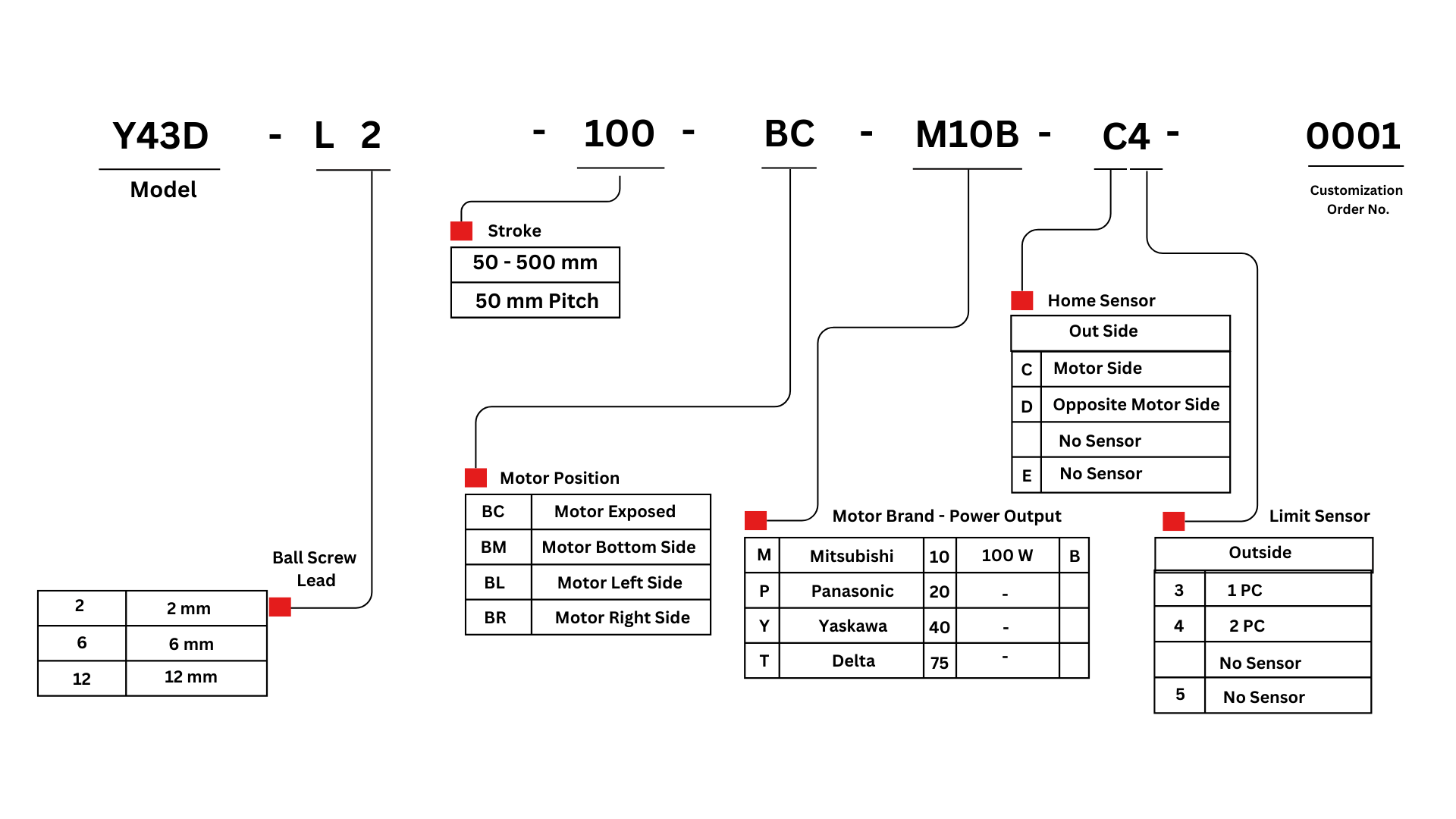

Y43D series
Y43D series specification
| Specification | Repeatability (mm) | ±0.01 | |||
|---|---|---|---|---|---|
| Lead(mm) | 2 | 6 | 12 | ||
| Maximum Rotating Speed(rpm) | 3600 | 3600 | 3600 | ||
| Maximum Speed(mm/s) | 120 | 360 | 720 | ||
| Maximum Payload | Horizontal(KG) | 40 | 30 | 20 | |
| Vertical(KG) | 12 | 9 | 7 | ||
| Vertical regenerative resistor(KG) | 14 | 12 | 11 | ||
| Rated Thurst (N) | 854 | 284 | 142 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | ||||
| Maximum Acceleration(G) | 0.12 | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 2271 | 2243 | 1436 | |
| Basic Static Load rating Coa(N) | 4837 | 3959 | 2441 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 5361 | |||
| Static Load Rating Cr(N) | 2880 | ||||
| Parts | AC Servo Motor Output(w) | 100 | |||
| Ball Screw | C7⌀10 | ||||
| Coupling(mm) | 7X8 | ||||
| Home Sensor | Outside | CS-6T | |||

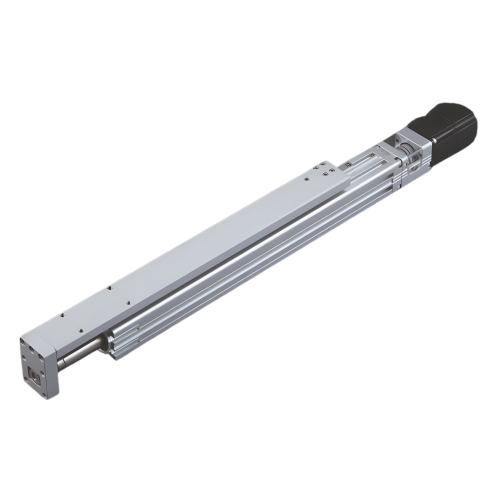

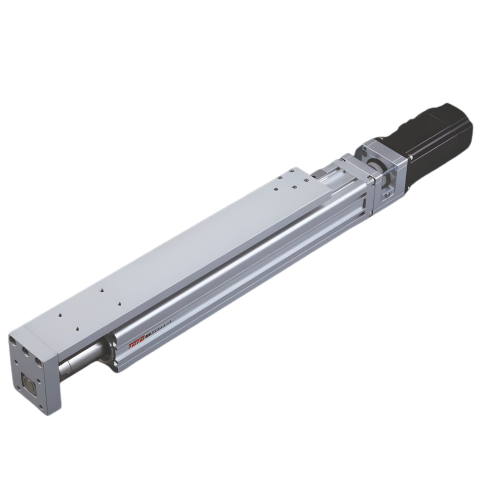

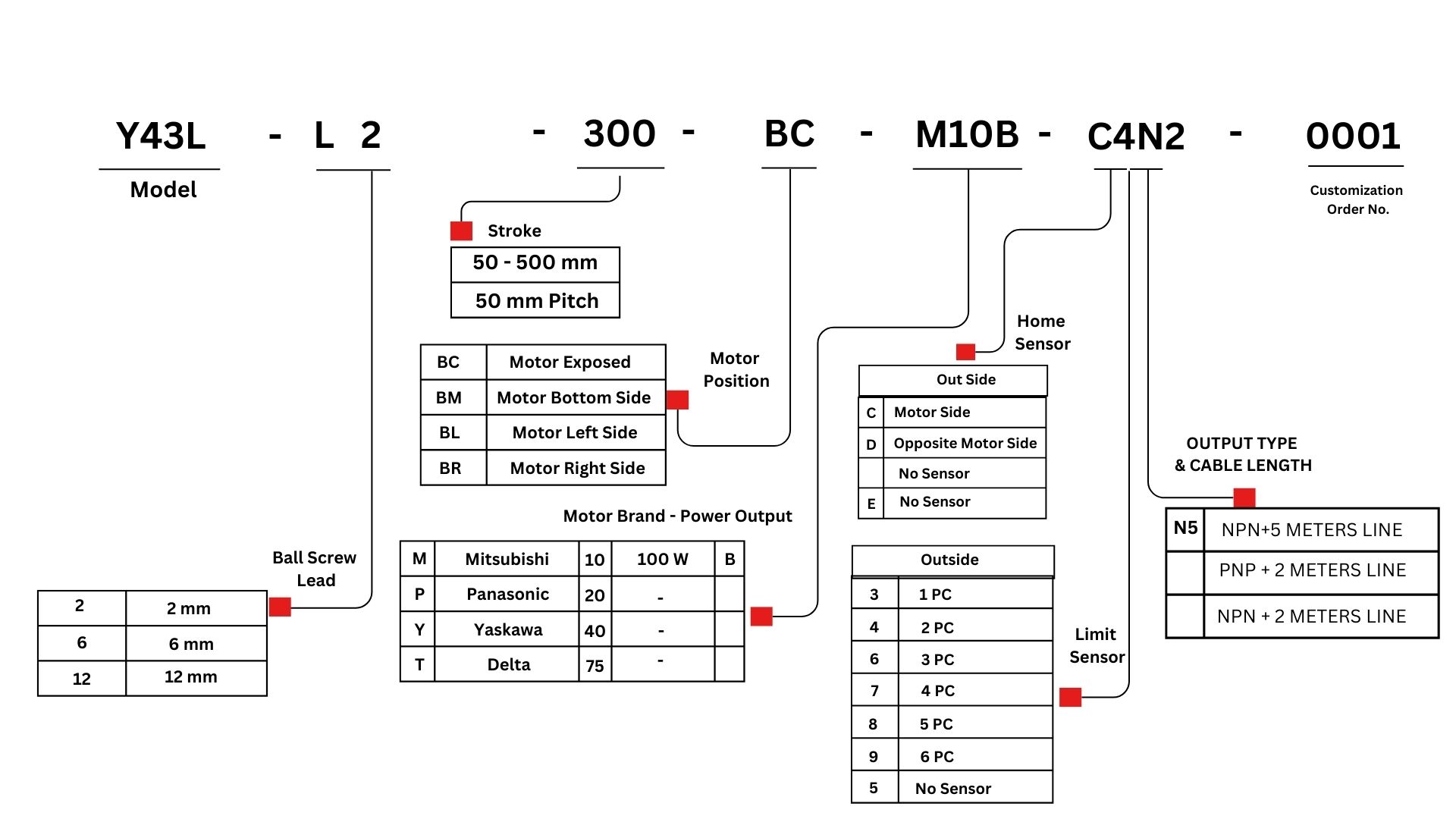

Y43L series
Y43L series specification
| Specification | Repeatability (mm) | ±0.01 | |||
|---|---|---|---|---|---|
| Lead(mm) | 2 | 6 | 12 | ||
| Maximum Rotating Speed(rpm) | 3600 | 3600 | 3600 | ||
| Maximum LinearSpeed(mm/s) | 120 | 360 | 720 | ||
| Maximum Payload | Horizontal(Kg) | 40 | 30 | 20 | |
| Vertical(Kg) | 12 | 9 | 7 | ||
| Vertical regenerative resistor(Kg) | 14 | 12 | 11 | ||
| Rated Thurst (N) | 854 | 284 | 142 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | ||||
| Maximum Acceleration(G) | 0.12 | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 2271 | 2243 | 1436 | |
| Basic Static Load rating Coa(N) | 4837 | 3959 | 2441 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 5361 | |||
| Static Load Rating Cr(N) | 2880 | ||||
| Parts | AC Servo Motor Output(w) | 100 | |||
| Ball Screw | C7⌀10 | ||||
| Coupling(mm) | 7X8 | ||||
| Home Sensor | Outside | CS-6T | |||

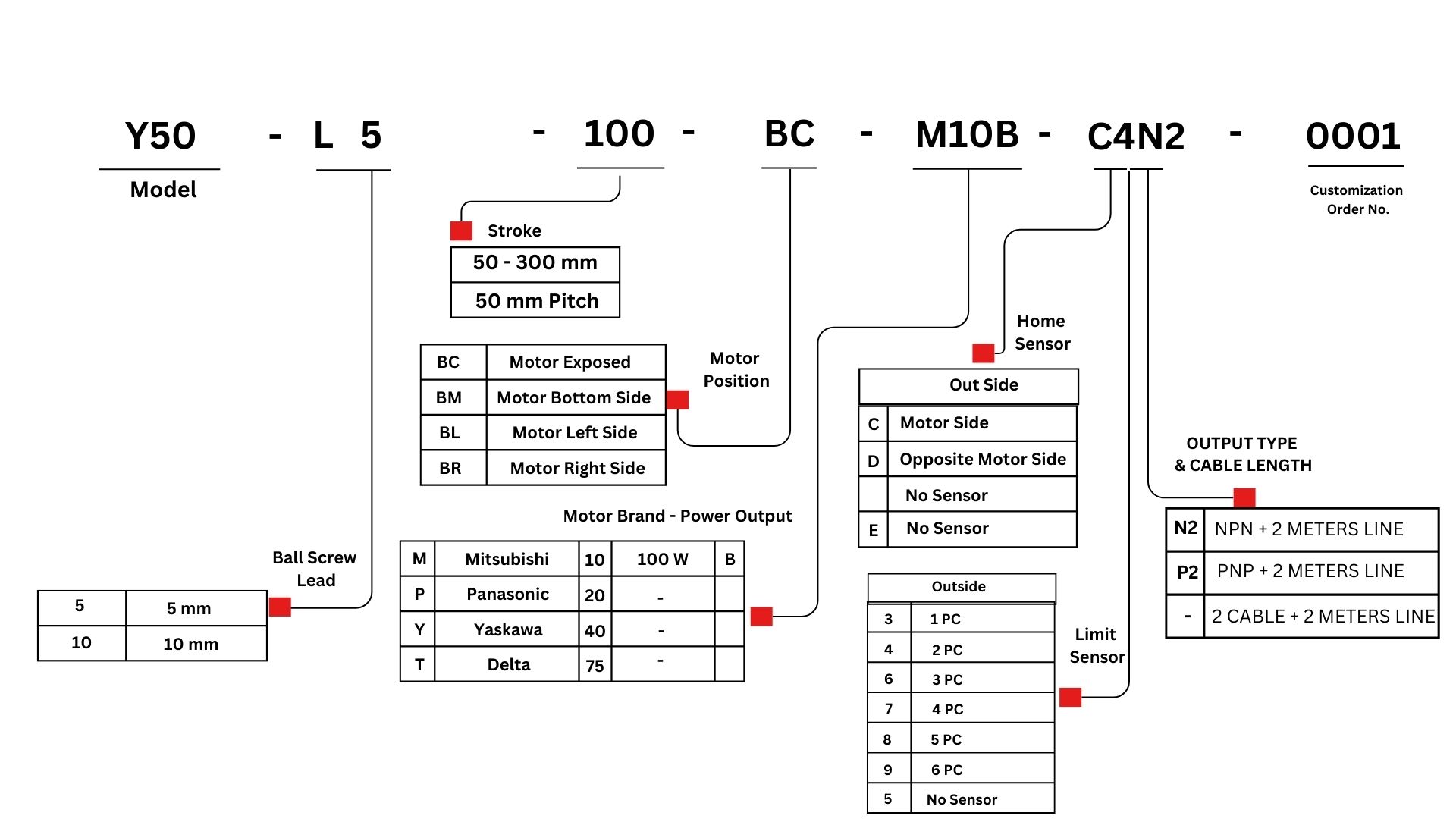

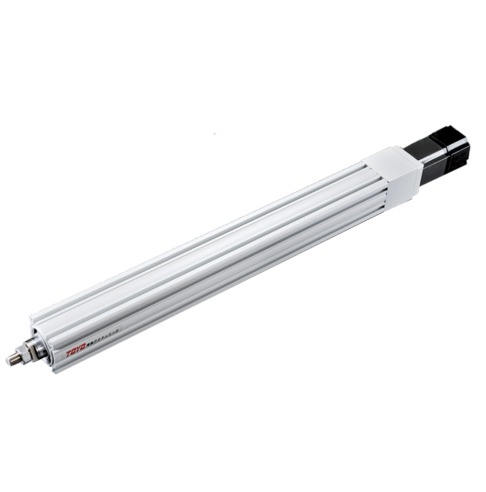

Y50 series
Y50 series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 5 | 10 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | ||
| Maximum Payload | Horizontal(Kg) | 30 | 15 | |
| Vertical(Kg) | 12 | 5 | ||
| Rated Thurst (N) | 341 | 170 | ||
| Stroke Pitch(mm) | 50-300mm/ 50 mm pitch | |||
| Parts | AC Servo Motor Output(w) | 100 | ||
| Ball Screw | C7⌀12 | |||
| Coupling(mm) | 7X8 | |||
| Home Sensor | Outside | CS-6T(2M Cable) | ||

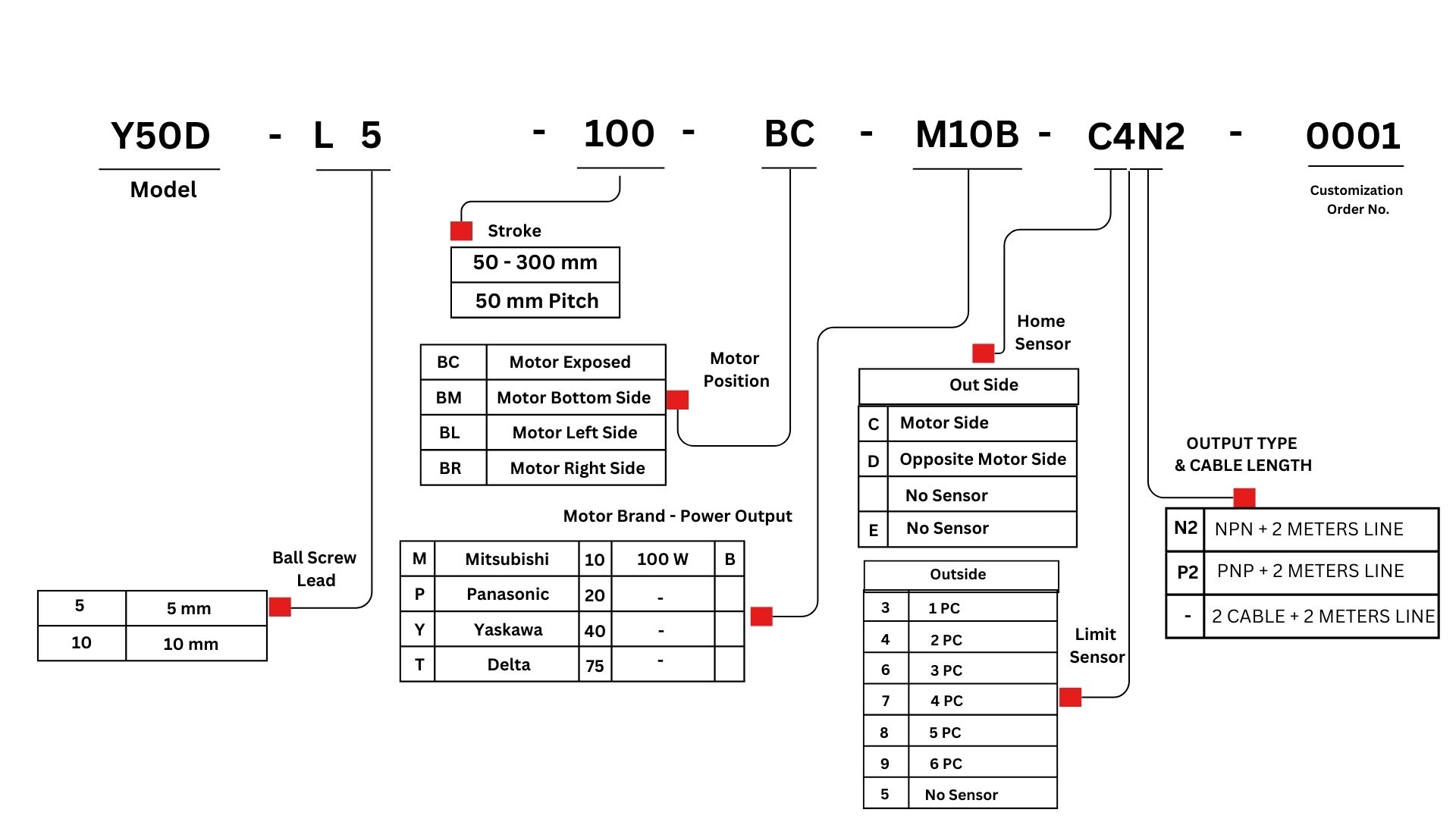

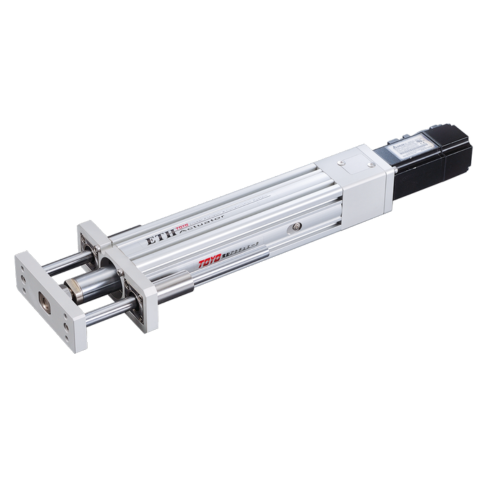

Y50D series
Y50D series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 5 | 10 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | ||
| Maximum Payload | Horizontal(Kg) | 30 | 15 | |
| Vertical(Kg) | 12 | 5 | ||
| Rated Thurst (N) | 341 | 170 | ||
| Stroke Pitch(mm) | 50-300mm/ 50 mm pitch | |||
| Parts | AC Servo Motor Output(w) | 100 | ||
| Ball Screw | C7⌀12 | |||
| Coupling(mm) | 7X8 | |||
| Home Sensor | Outside | CS-6T(2M Cable) | ||

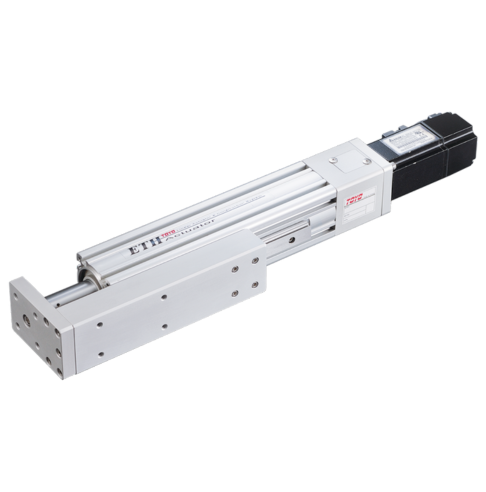

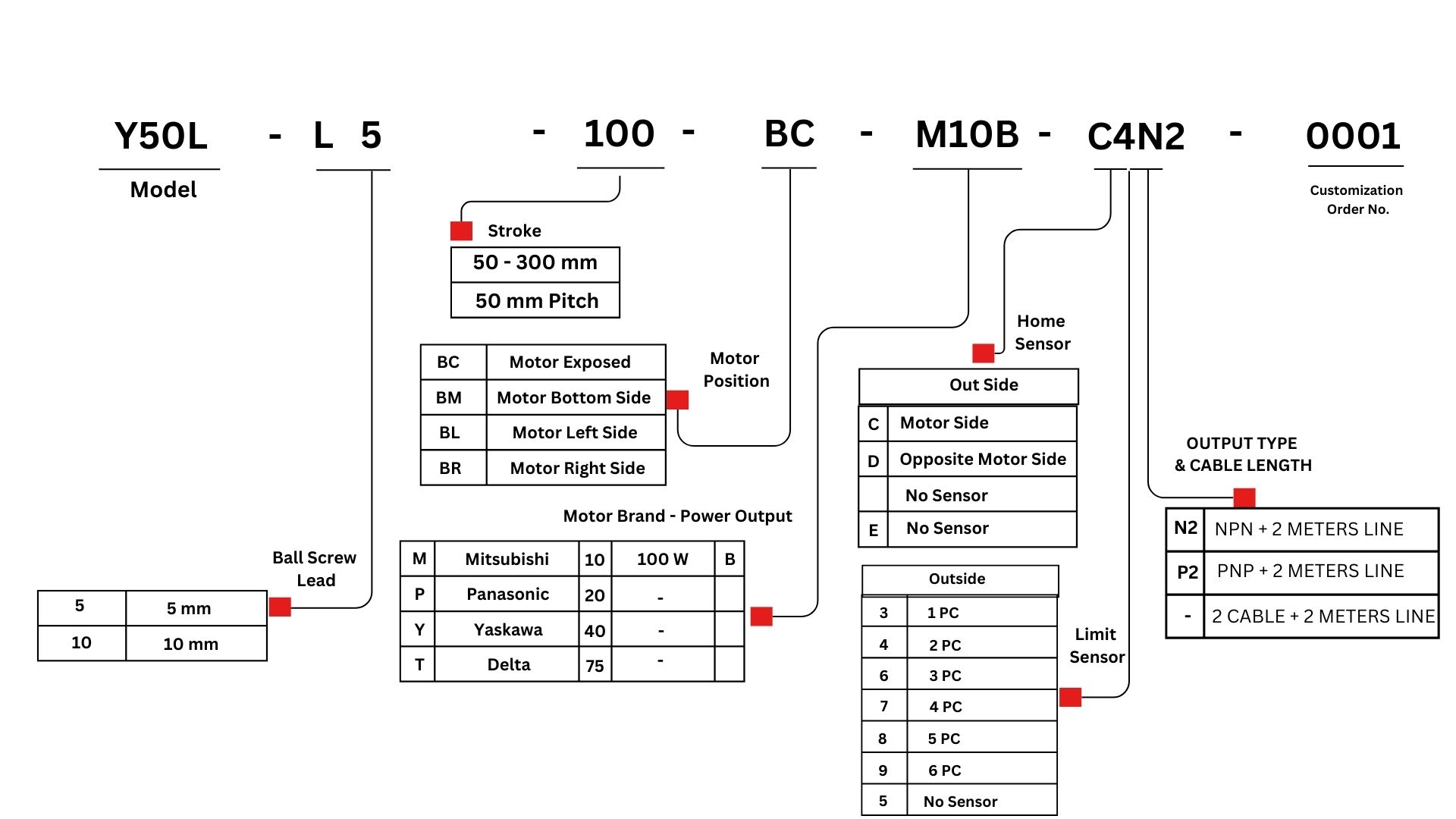

Y50L series
Y50L series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 5 | 10 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | ||
| Maximum Payload | Horizontal(Kg) | 30 | 15 | |
| Vertical(Kg) | 12 | 5 | ||
| Rated Thurst (N) | 341 | 170 | ||
| Stroke Pitch(mm) | 50-300mm/ 50 mm pitch | |||
| Parts | AC Servo Motor Output(w) | 100 | ||
| Ball Screw | C7⌀12 | |||
| Coupling(mm) | 7X8 | |||
| Home Sensor | Outside | CS-6T(2M Cable) | ||

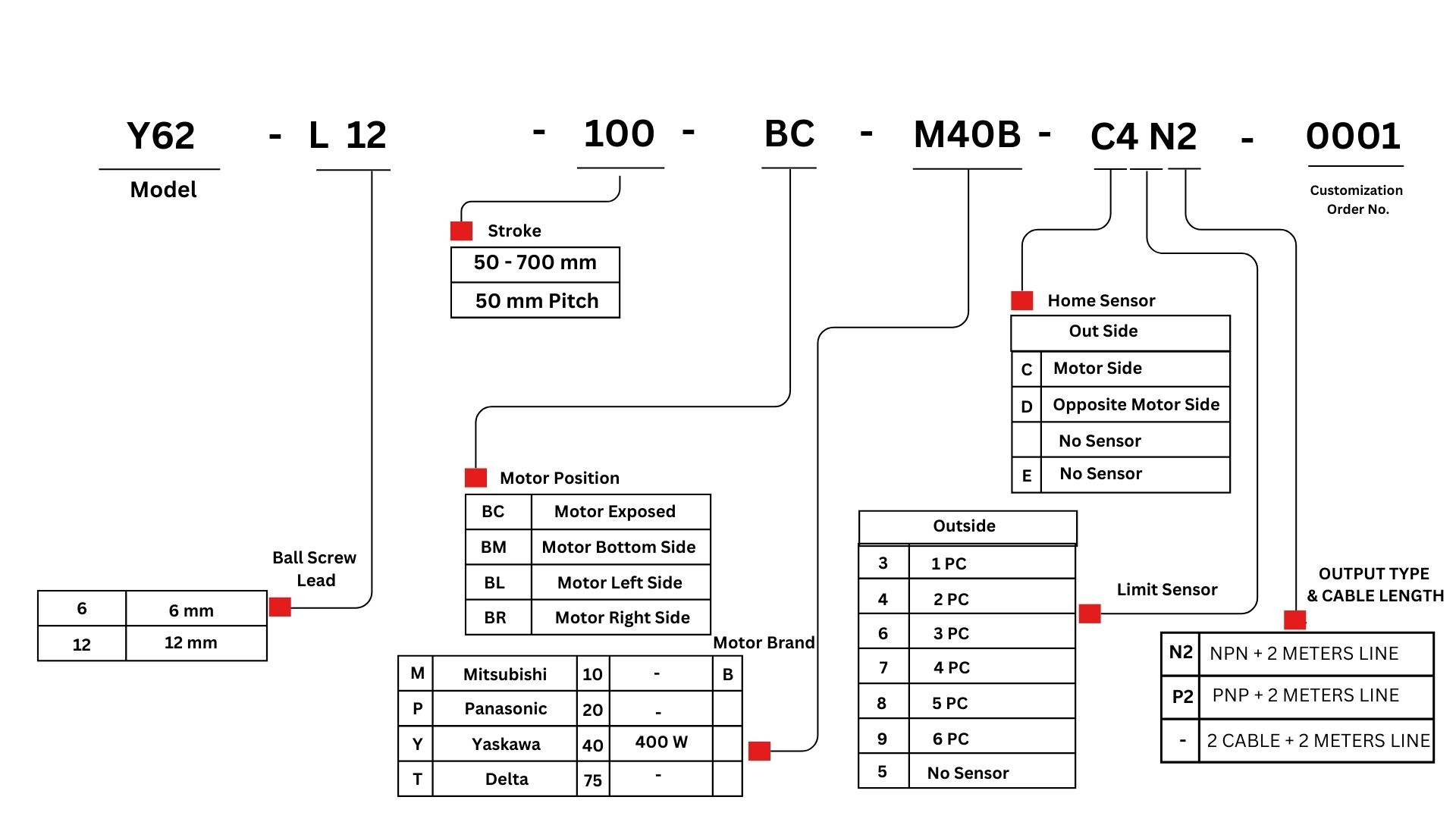

Y62 series
Y62 series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 6 | 12 | ||
| Maximum Rotating Speed(rpm) | 3600 | 3600 | ||
| Maximum Linear Speed(mm/s) | 360 | 720 | ||
| Maximum Payload | Horizontal(Kg) | 100 | 80 | |
| Vertical(Kg) | 33 | 20 | ||
| Vertical regenerative resistor(Kg) | 45 | 30 | ||
| Rated Thurst (N) | 1156 | 578 | ||
| Stroke Pitch(mm) | 50-700mm/ 50 mm pitch | |||
| Maximum Acceleration(G) | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 7733 | 5856 | |
| Basic Static Load rating Coa(N) | 14200 | 10402 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | ||
| Static Load Rating Cr(N) | 5060 | |||
| Parts | AC Servo Motor Output(w) | 400 | ||
| Ball Screw | C7⌀14 | |||
| Coupling | 10x14 | |||
| Home Sensor | Outside | CS-6T(2M Cable) | ||

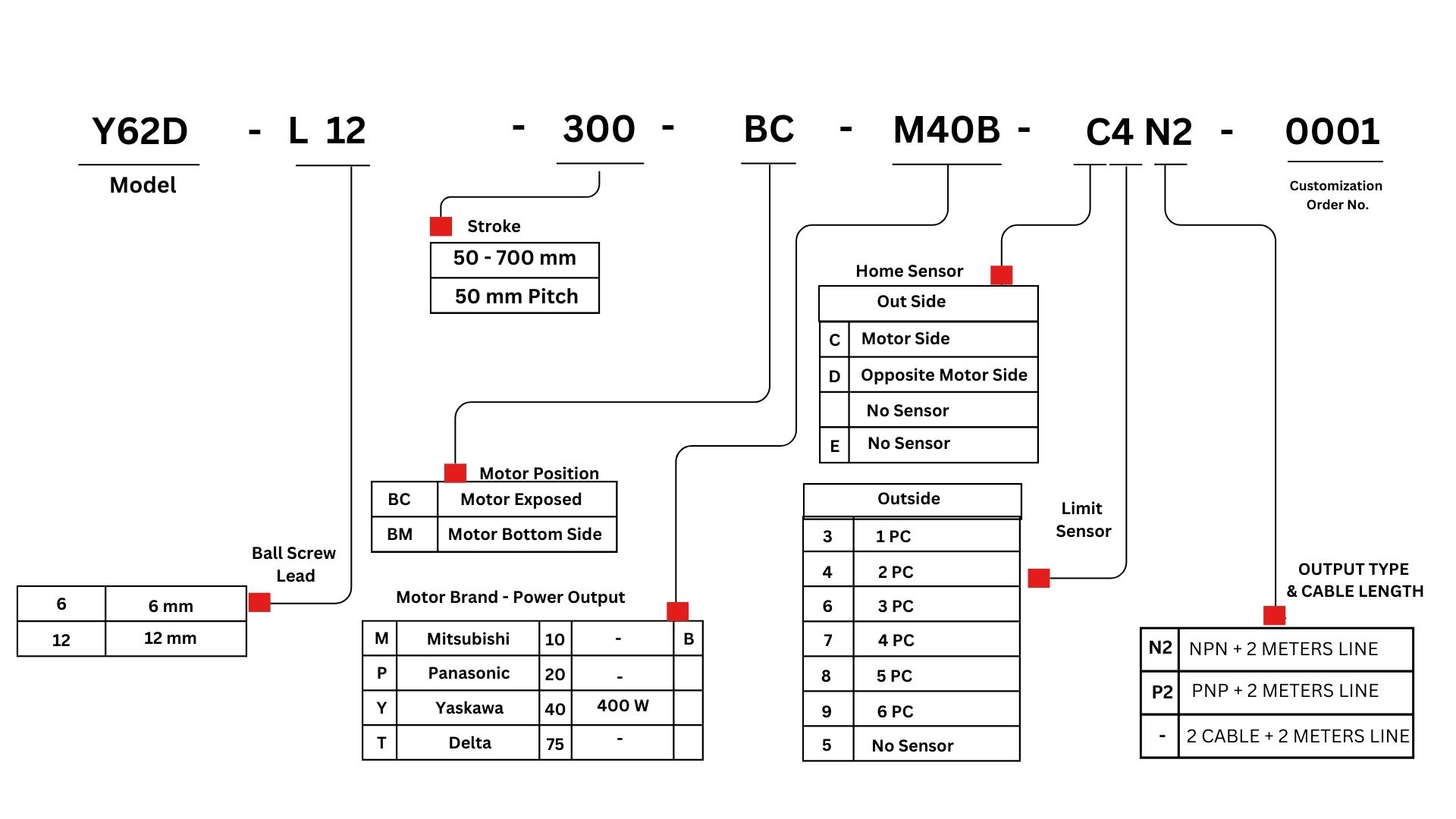

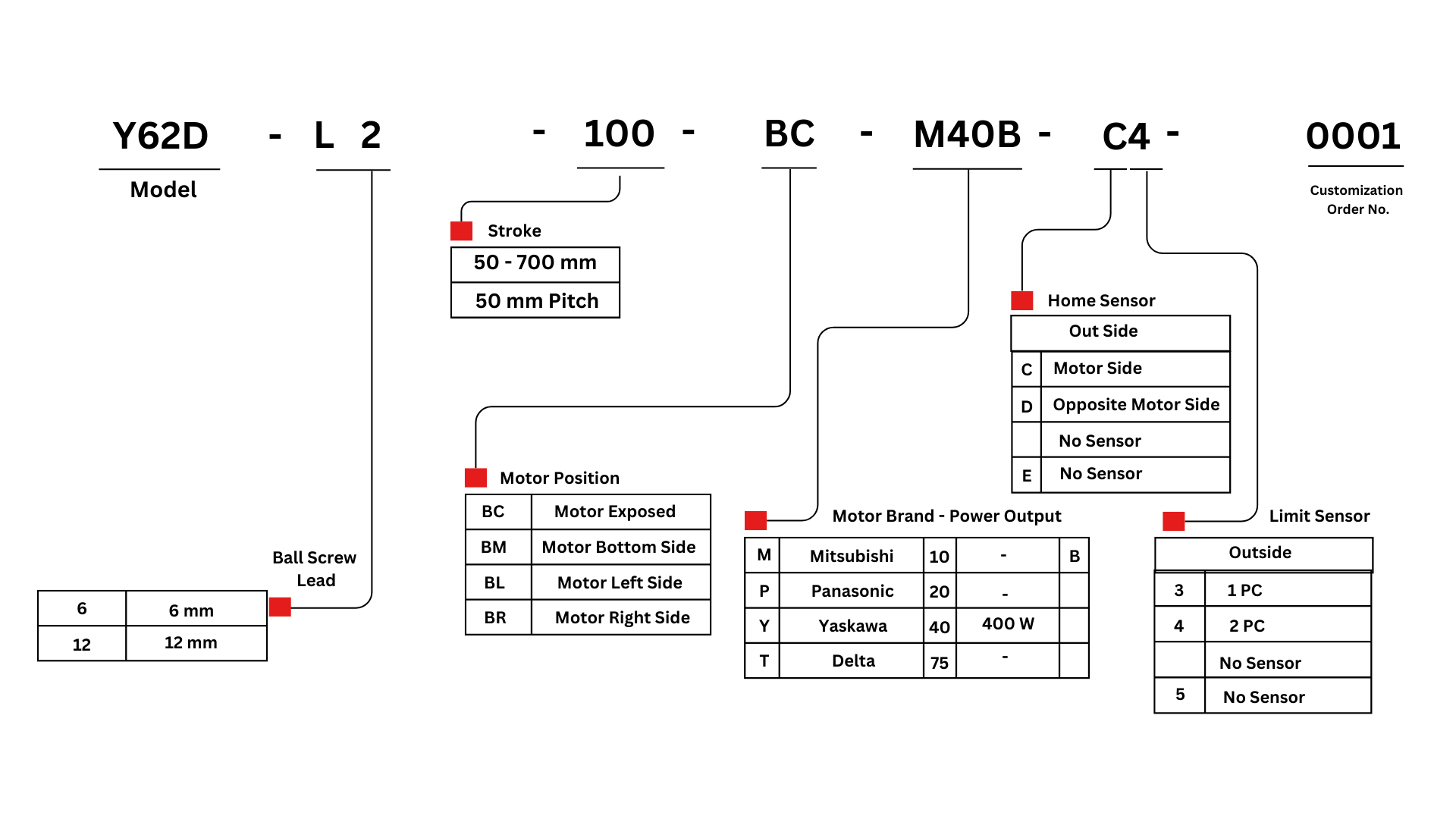

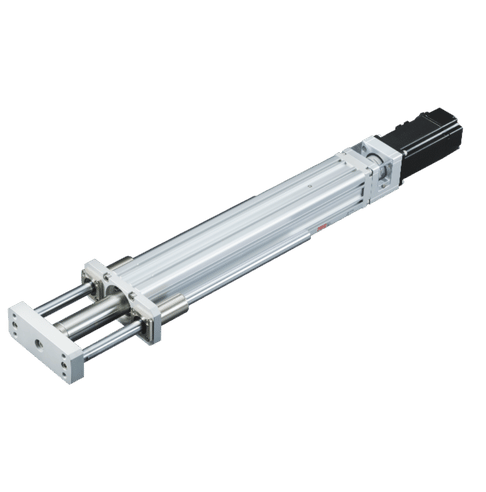

Y62D series
Y62D series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 6 | 12 | ||
| Maximum Rotating Speed(rpm) | 3600 | 3600 | ||
| Maximum Linear Speed(mm/s) | 360 | 720 | ||
| Maximum Payload | Horizontal(Kg) | 100 | 80 | |
| Vertical(Kg) | 33 | 20 | ||
| Vertical regenerative resistor(Kg) | 45 | 30 | ||
| Rated Thurst (N) | 1156 | 578 | ||
| Stroke Pitch(mm) | 50-700mm/ 50 mm pitch | |||
| Maximum Acceleration(G) | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 7733 | 5856 | |
| Basic Static Load rating Coa(N) | 14200 | 10402 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | ||
| Static Load Rating Cr(N) | 5060 | |||
| Parts | AC Servo Motor Output(w) | 400 | ||
| Ball Screw | C7⌀14 | |||
| Coupling | 10x14 | |||
| Home Sensor | Outside | CS-6T | ||

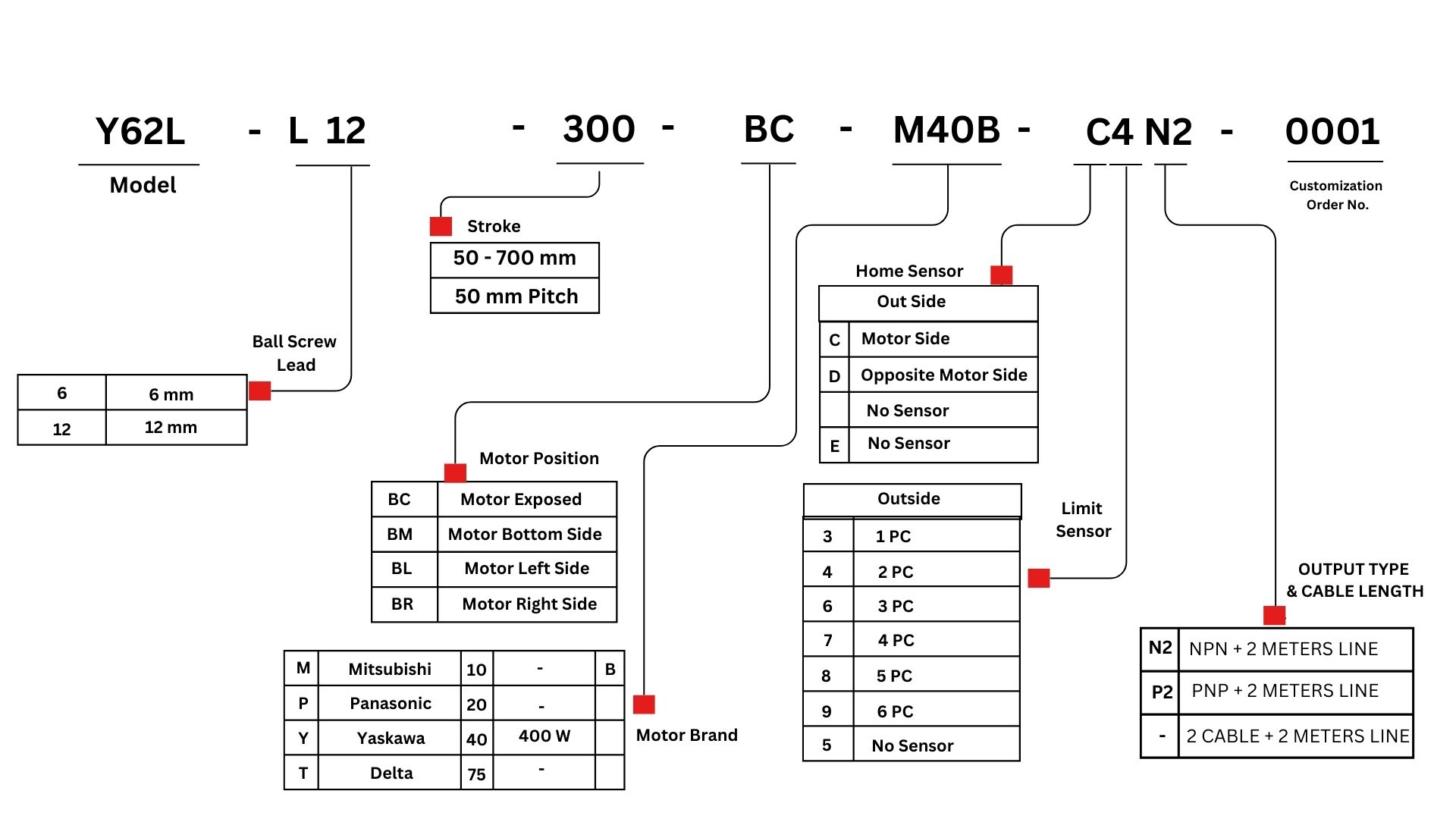

Y62L series
Y62L series specification
| Specification | Repeatability (mm) | ±0.01 | ||
|---|---|---|---|---|
| Lead(mm) | 6 | 12 | ||
| Maximum Rotating Speed(rpm) | 3600 | 3600 | ||
| Maximum Linear Speed(mm/s) | 360 | 720 | ||
| Maximum Payload | Horizontal(Kg) | 100 | 80 | |
| Vertical(Kg) | 33 | 20 | ||
| Vertical regenerative resistor(Kg) | 45 | 30 | ||
| Rated Thurst (N) | 1156 | 578 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | |||
| Maximum Acceleration(G) | 0.37 | 0.73 | ||
| Ball Screw | Basic Dynamic Load rating Ca(N) | 7733 | 5856 | |
| Basic Static Load rating Coa(N) | 14200 | 10402 | ||
| Fixed Bearing | Basic Dynamic Load rating(N) | 8447 | ||
| Static Load Rating Cr(N) | 5060 | |||
| Parts | AC Servo Motor Output(w) | 400 | ||
| Ball Screw | C7⌀14 | |||
| Coupling | 10x14 | |||
| Home Sensor | Outside | CS-6T | ||

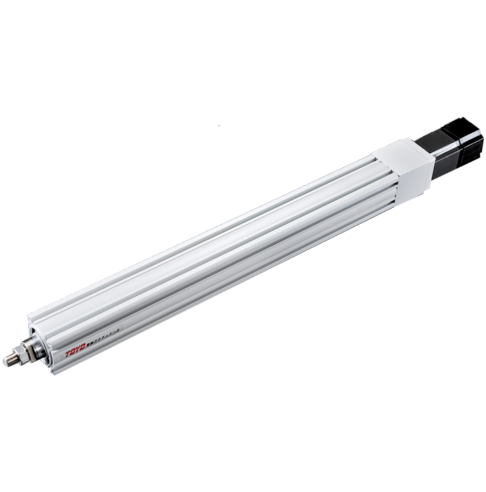

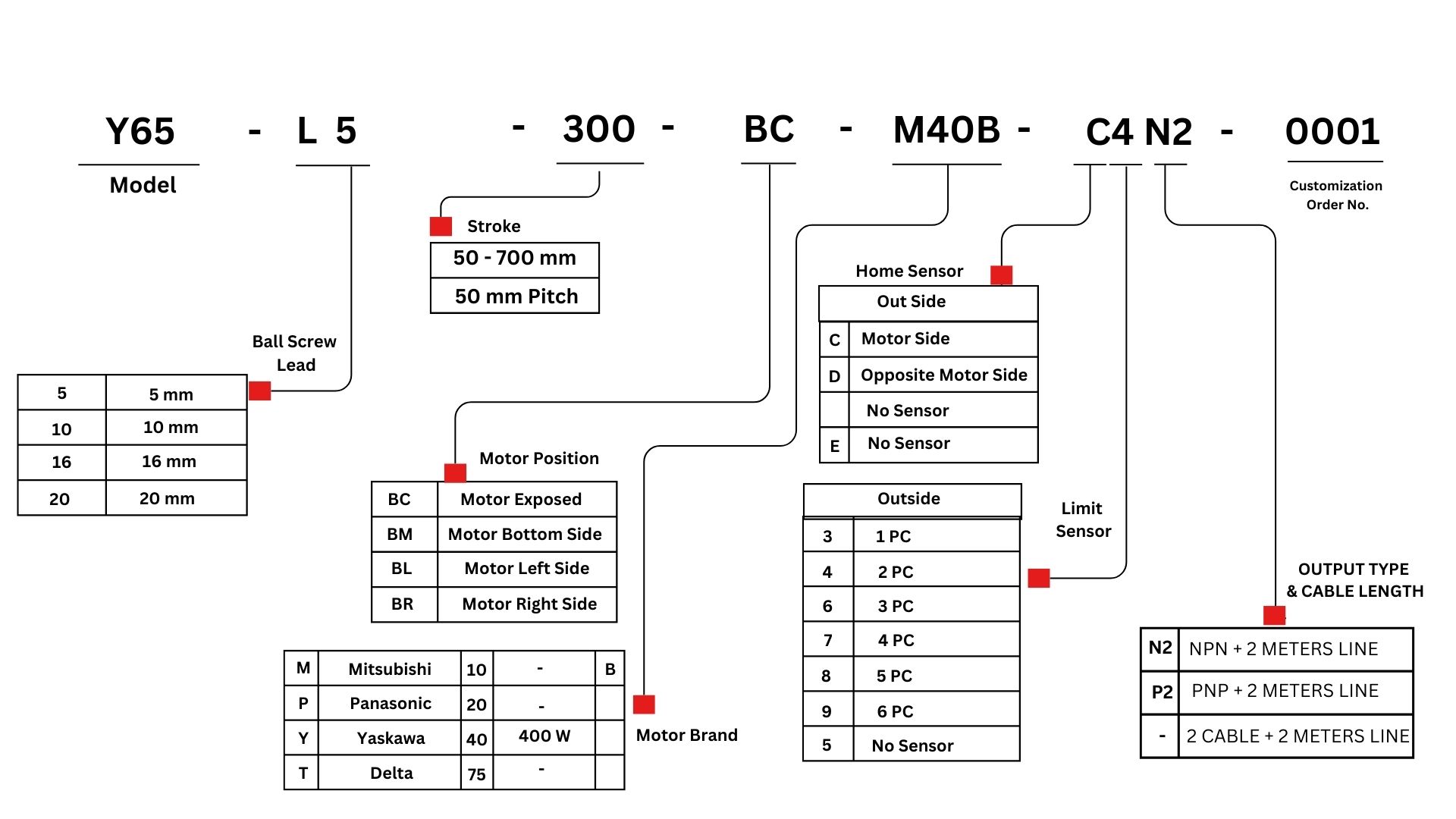

Y65 series
Y65 series specification
| Specification | Repeatability (mm) | ±0.01 | ||||
|---|---|---|---|---|---|---|
| Lead(mm) | 5 | 10 | 16 | 20 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | 800 | 1000 | ||
| Maximum Payload | Horizontal(Kg) | 110 | 88 | 48 | 40 | |
| Vertical(Kg) | 33 | 22 | 10 | 8 | ||
| Rated Thurst (N) | 1388 | 694 | 433 | 347 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | |||||
| Parts | AC Servo Motor Output(w) | 400 | ||||
| Ball Screw | C7⌀16 | |||||
| Coupling(mm) | 10X14 | |||||
| Home Sensor | Outside | CS-6T(2M Cable) | ||||

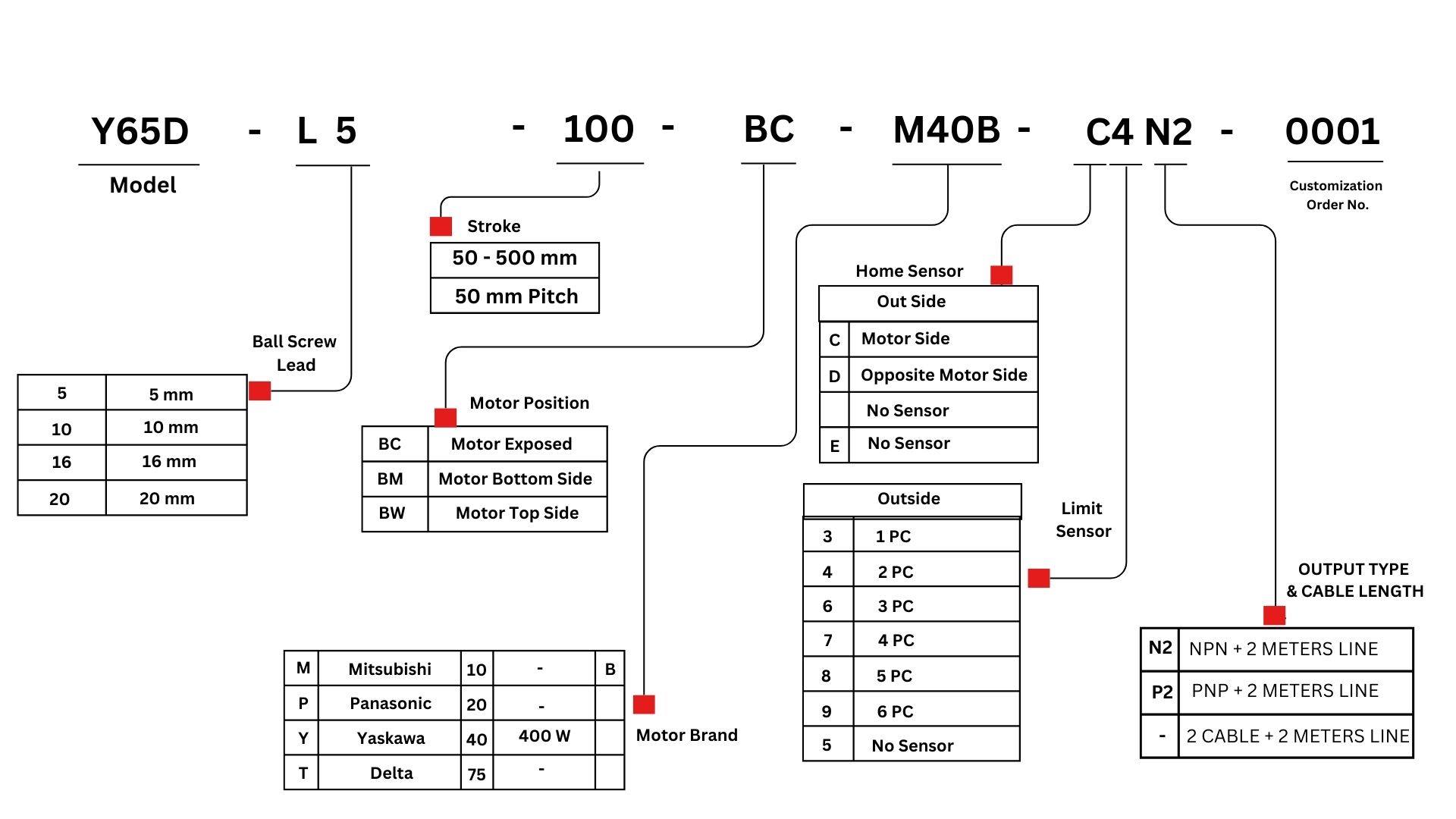

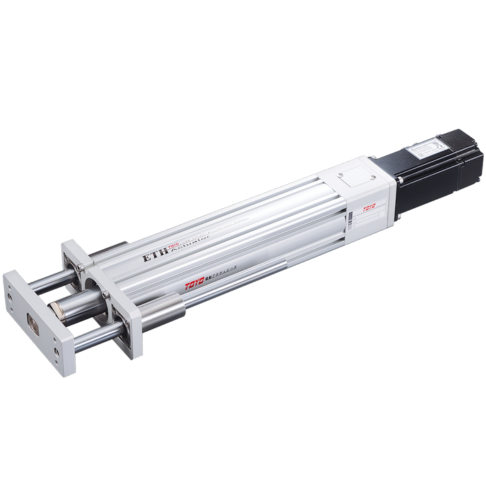

Y65D series
Y65D series specification
| Specification | Repeatability (mm) | ±0.01 | ||||
|---|---|---|---|---|---|---|
| Lead(mm) | 5 | 10 | 16 | 20 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | 800 | 1000 | ||
| Maximum Payload | Horizontal(Kg) | 110 | 88 | 48 | 40 | |
| Vertical(Kg) | 33 | 22 | 10 | 8 | ||
| Rated Thurst (N) | 1388 | 694 | 433 | 347 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | |||||
| Parts | AC Servo Motor Output(w) | 400 | ||||
| Ball Screw | C7⌀16 | |||||
| Coupling(mm) | 10X14 | |||||
| Home Sensor | Outside | CS-6T(2M Cable) | ||||
Y65L series
Y65L series specification
| Specification | Repeatability (mm) | ±0.01 | ||||
|---|---|---|---|---|---|---|
| Lead(mm) | 5 | 10 | 16 | 20 | ||
| Maximum Rotating Speed(rpm) | 3000 | 3000 | 3000 | 3000 | ||
| Maximum Linear Speed(mm/s) | 250 | 500 | 800 | 1000 | ||
| Maximum Payload | Horizontal(Kg) | 110 | 88 | 48 | 40 | |
| Vertical(Kg) | 33 | 22 | 10 | 8 | ||
| Rated Thurst (N) | 1388 | 694 | 433 | 347 | ||
| Stroke Pitch(mm) | 50-500mm/ 50 mm pitch | |||||
| Parts | AC Servo Motor Output(w) | 400 | ||||
| Ball Screw | C7⌀16 | |||||
| Coupling(mm) | 10X14 | |||||
| Home Sensor | Outside | CS-6T(2M Cable) | ||||
