Linear Rotary Actuator

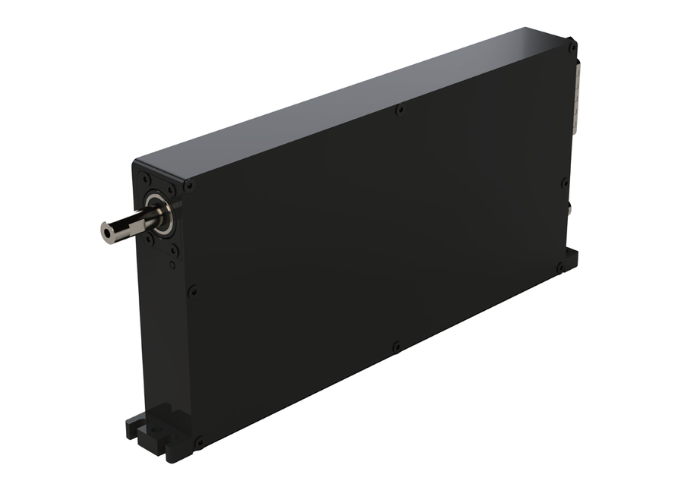

Linear Rotary Actuators (VLR Series) are advanced motion devices that combine linear and rotary motion in a single unit. These actuators are designed for high-precision applications where both positioning and rotation are required simultaneously.
With a compact design and excellent force control, VLR actuators deliver superior performance in semiconductor, electronics, and automation industries.
Features
- Combined Linear + Rotary Motion
- Soft landing technology (minimum 20g contact force)
- High positional accuracy (±3μm repeatability)
- Compact and lightweight design (up to 30% smaller)
- Precise force control (±2g accuracy)
- Multiple control modes: Speed, Force, Position
Applications
Semiconductor chip mounting, Precision pick & place systems, Mobile camera module assembly, Electronics assembly automation, High-precision positioning systems
Industries
Semiconductor Industry, 3C Electronics Industry, Automotive Electronics, Medical Equipment, Laser & Optical Industry.

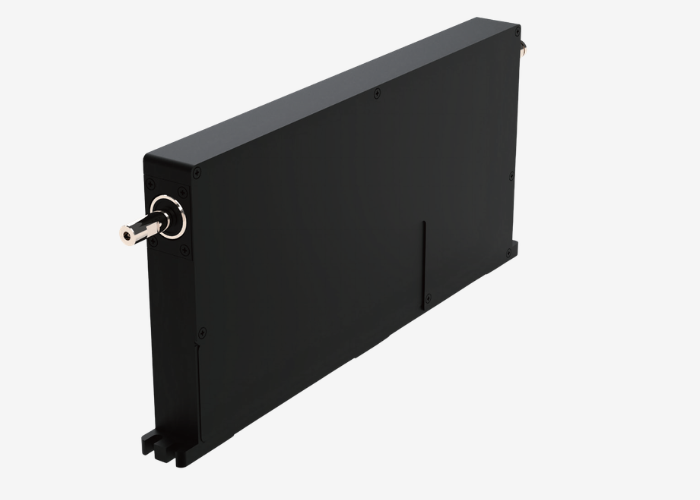

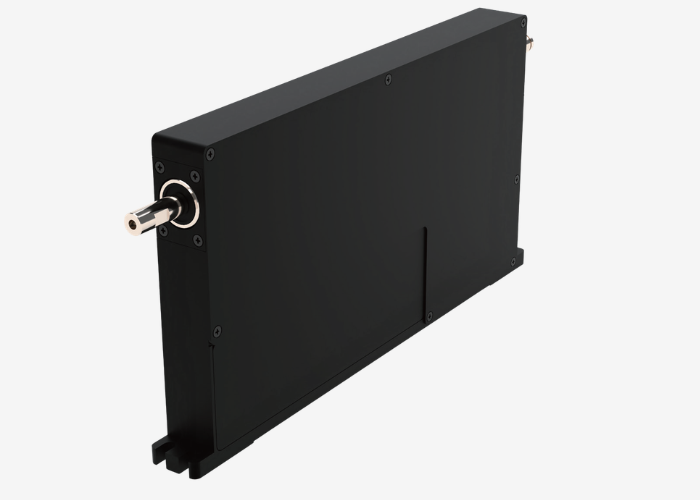

VLR16-S15 Series

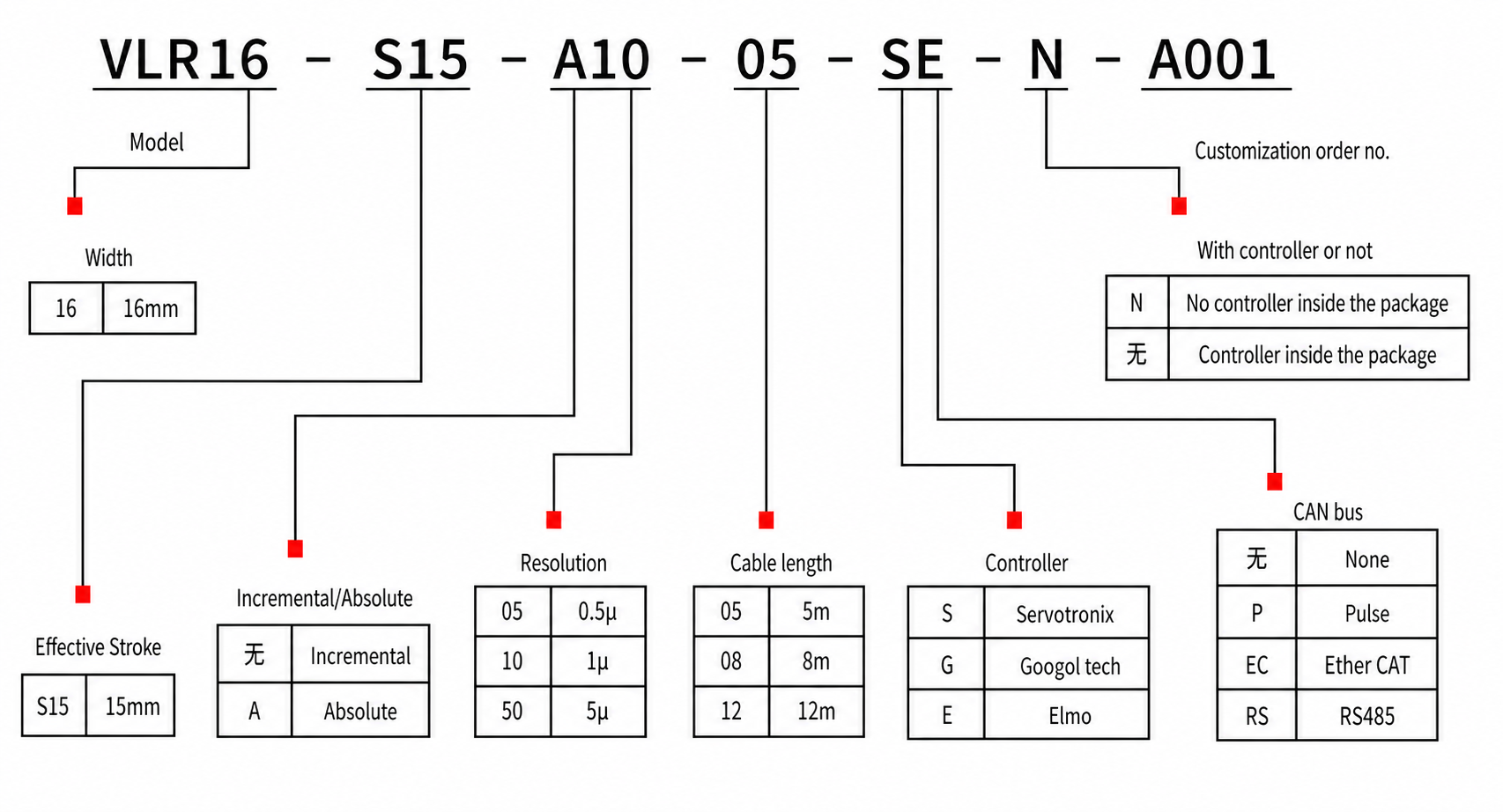

VLR16-S15 Series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 15 | ||
| Maximum Thrust (N) | 13.2 | ||
| Continuous Thrust (N) | 5.8 | ||
| Peak Current (A) | 2.1 | ||
| Continuous Current (A) | 0.9 | ||
| Force Constant (N/A) | 6.8 | ||
| Power Control Range (%) | 20 - 400 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 48 | ||
| Rotation Resolution (°) | 32768 pulses per revolution, equivalent to a resolution of 0.01° | ||
| Weight of Moving Object (g) | 130 | ||
| Total Weight (g) | 550 | ||
| Size (mm) | 160 × 90 × 17 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

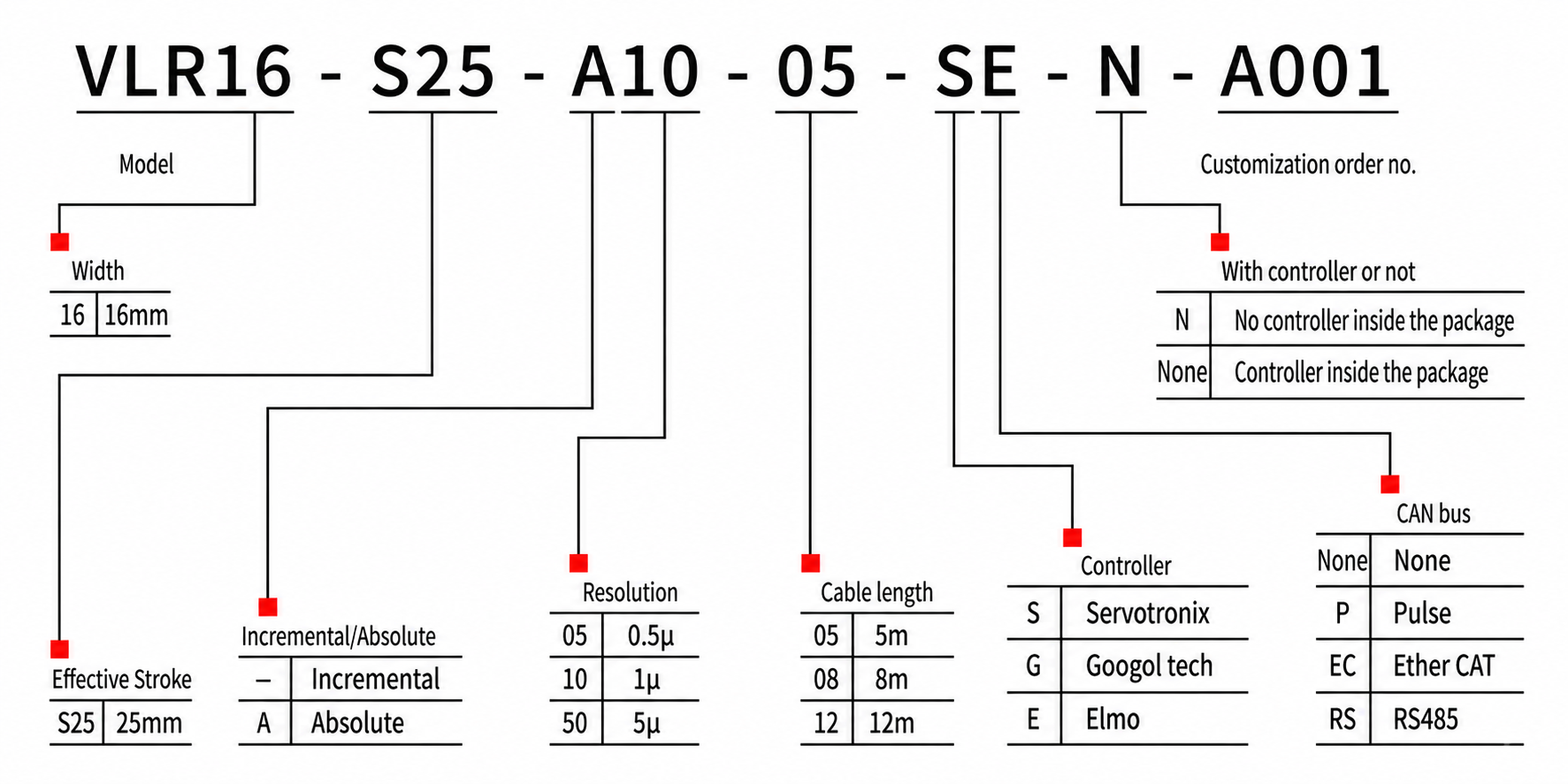

VLR16 - S25 Series
VLR16 - S25 Series
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 25 | ||
| Maximum Thrust (N) | 13.2 | ||
| Continuous Thrust (N) | 5.8 | ||
| Peak Current (A) | 2.1 | ||
| Continuous Current (A) | 0.9 | ||
| Force Constant (N/A) | 6.8 | ||
| Power Control Range (%) | 20 - 400 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 48 | ||
| Rotation Resolution (°) | 32768 pulses per revolution, equivalent to a resolution of 0.01° | ||
| Weight of Moving Object (g) | 136 | ||
| Total Weight (g) | 580 | ||
| Size (mm) | 180 × 90 × 17 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

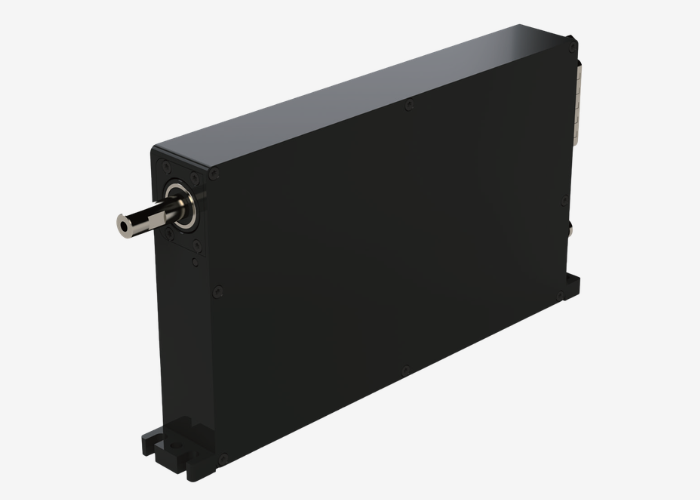

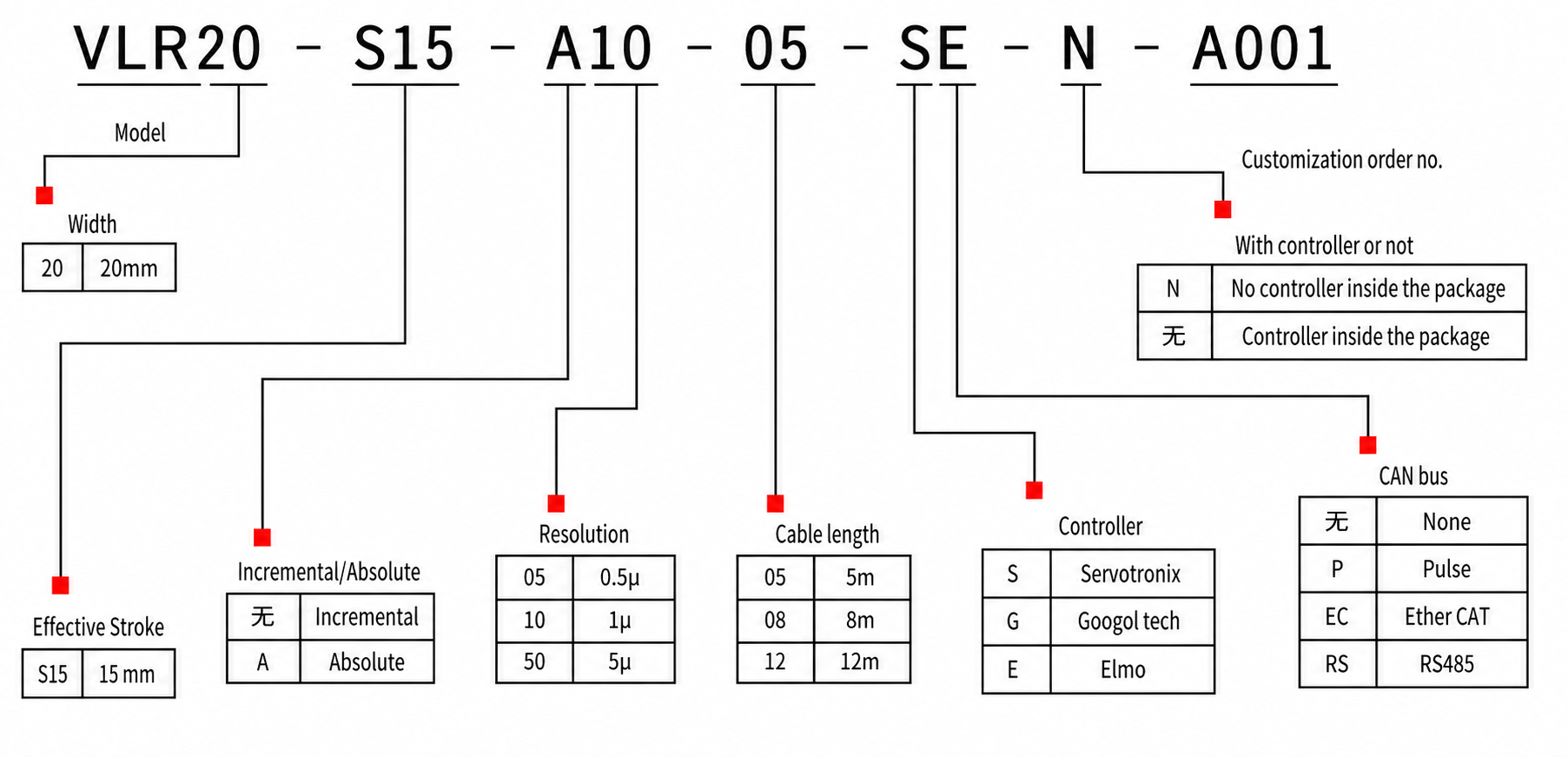

VLR20-S15 series
VLR20-S15 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 15 | ||
| Maximum Thrust (N) | 13.2 | ||
| Continuous Thrust (N) | 5.8 | ||
| Peak Current (A) | 2.1 | ||
| Continuous Current (A) | 0.9 | ||
| Force Constant (N/A) | 6.8 | ||
| Power Control Range (%) | 20 - 400 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 48 | ||
| Rotation Resolution (°) | 32768 pulses per revolution, equivalent to a resolution of 0.01° | ||
| Weight of Moving Object (g) | 136 | ||
| Total Weight (g) | 580 | ||
| Size (mm) | 130 × 80 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

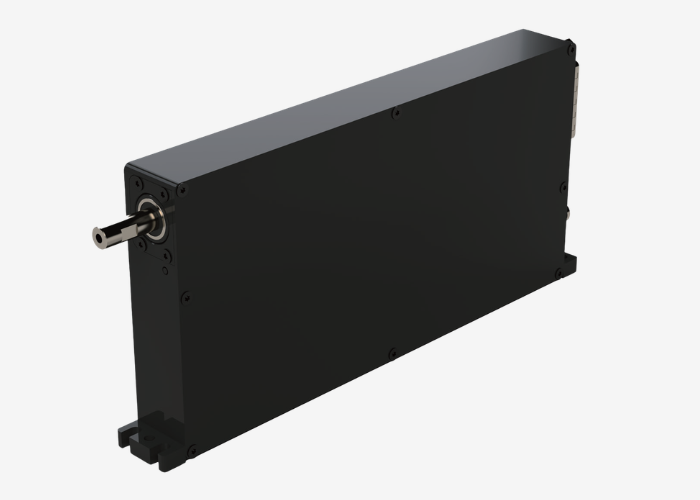

VLR20-S25 series

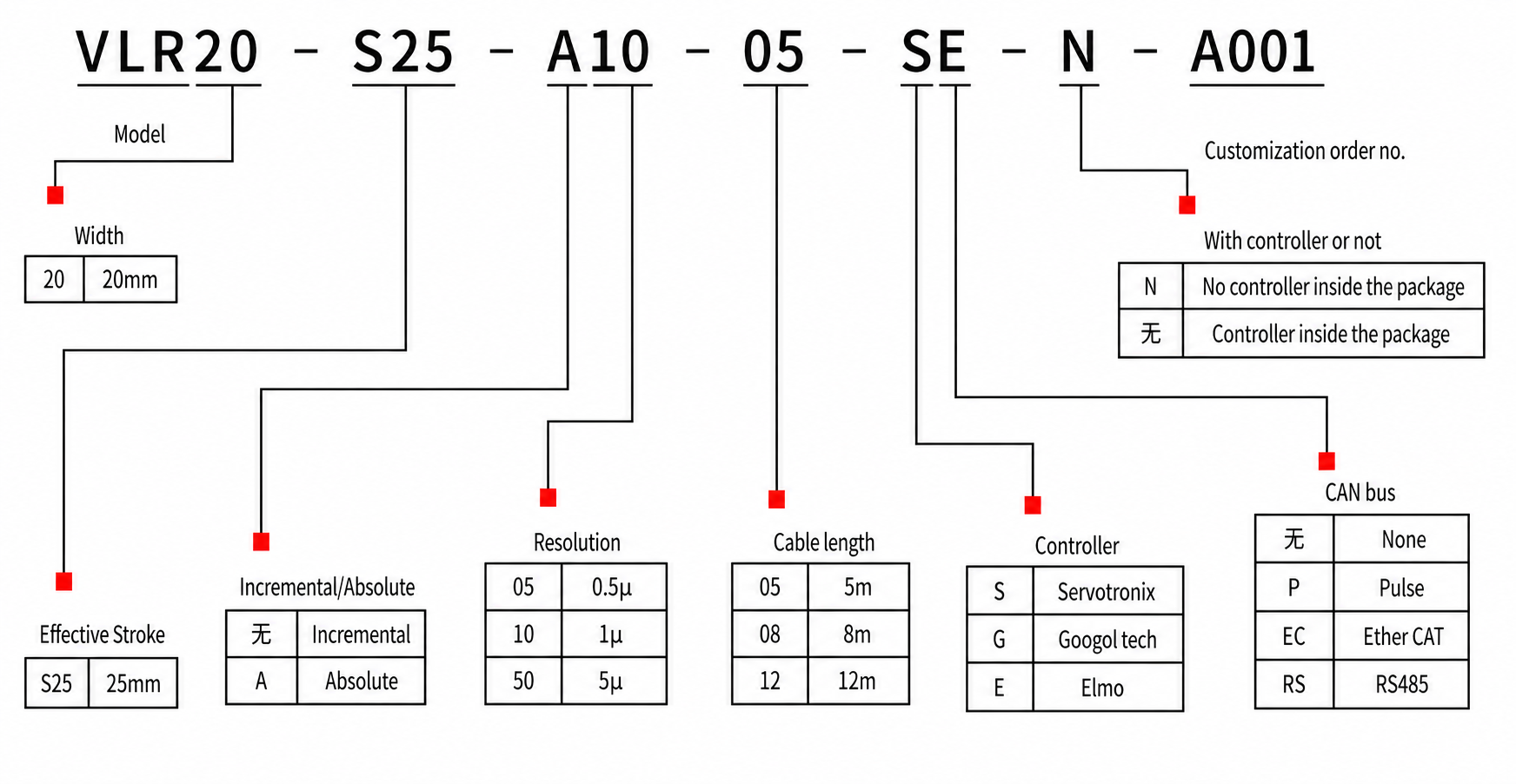

VLR20-S25 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 25 | ||
| Maximum Thrust (N) | 13.2 | ||
| Continuous Thrust (N) | 5.8 | ||
| Peak Current (A) | 2.1 | ||
| Continuous Current (A) | 0.9 | ||
| Force Constant (N/A) | 6.8 | ||
| Power Control Range (%) | 20 - 400 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 48 | ||
| Rotation Resolution (°) | 32768 pulses per revolution, equivalent to a resolution of 0.01° | ||
| Weight of Moving Object (g) | 148 | ||
| Total Weight (g) | 680 | ||
| Size (mm) | 155 × 80 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

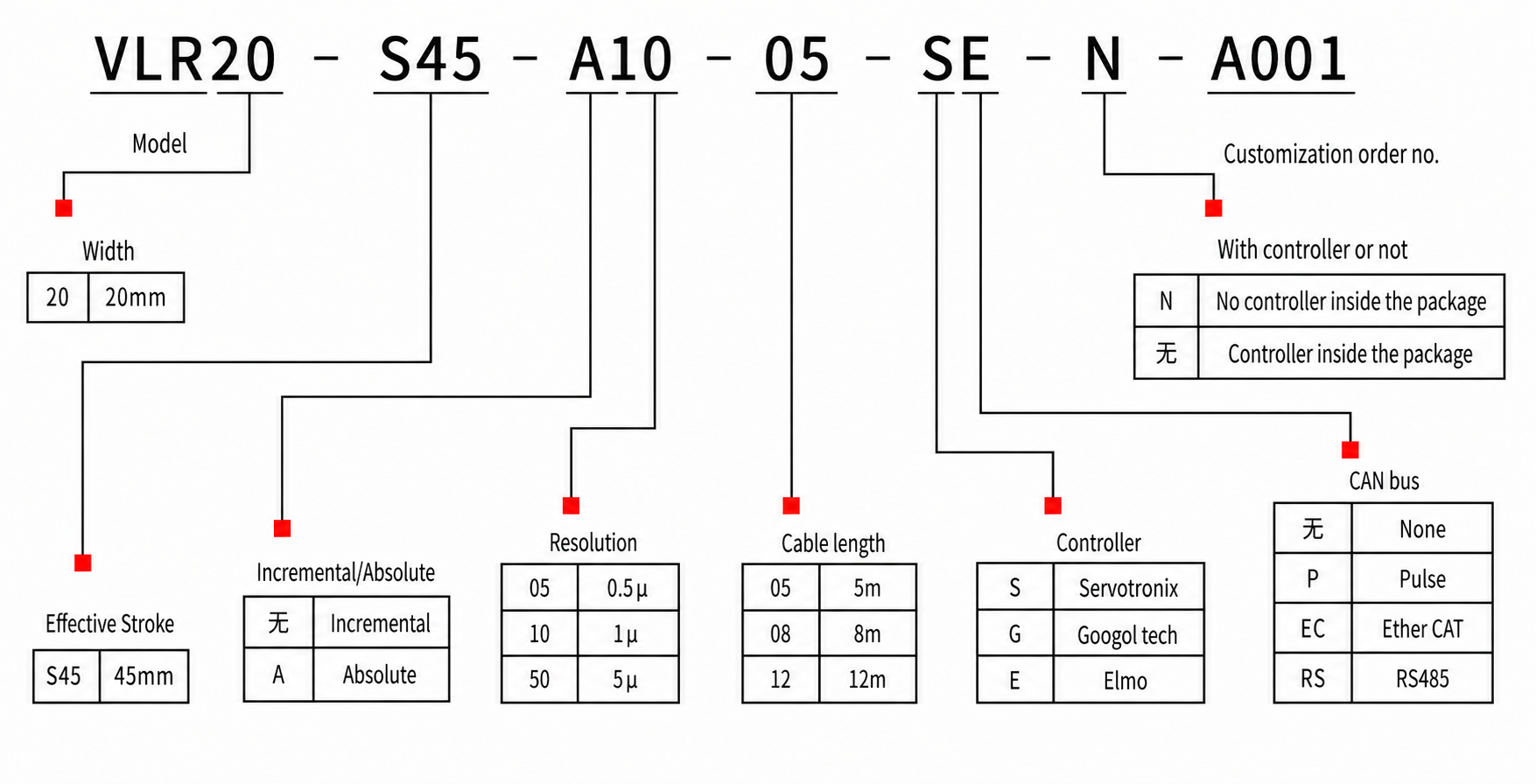

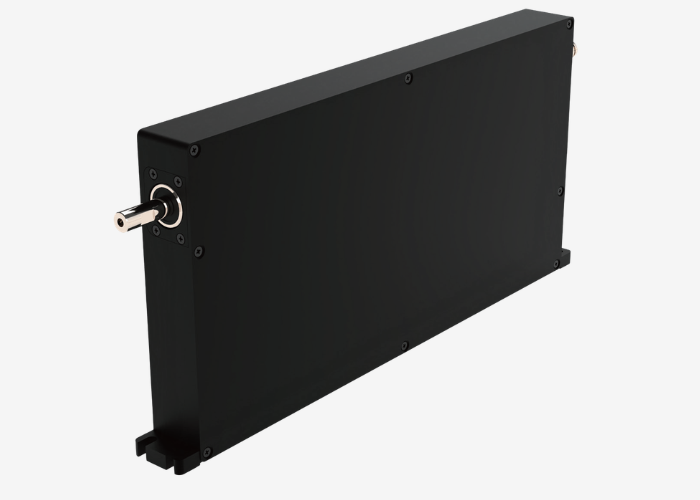

VLR20-S45 series
VLR20-S45 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 45 | ||
| Maximum Thrust (N) | 28 | ||
| Continuous Thrust (N) | 11.2 | ||
| Peak Current (A) | 3.0 | ||
| Continuous Current (A) | 1.2 | ||
| Force Constant (N/A) | 9.4 | ||
| Power Control Range (%) | 20 - 400 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 48 | ||
| Rotation Resolution (°) | 32768 pulses per revolution, equivalent to a resolution of 0.01° | ||
| Weight of Moving Object (g) | 175 | ||
| Total Weight (g) | 700 | ||
| Size (mm) | 195 × 100 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

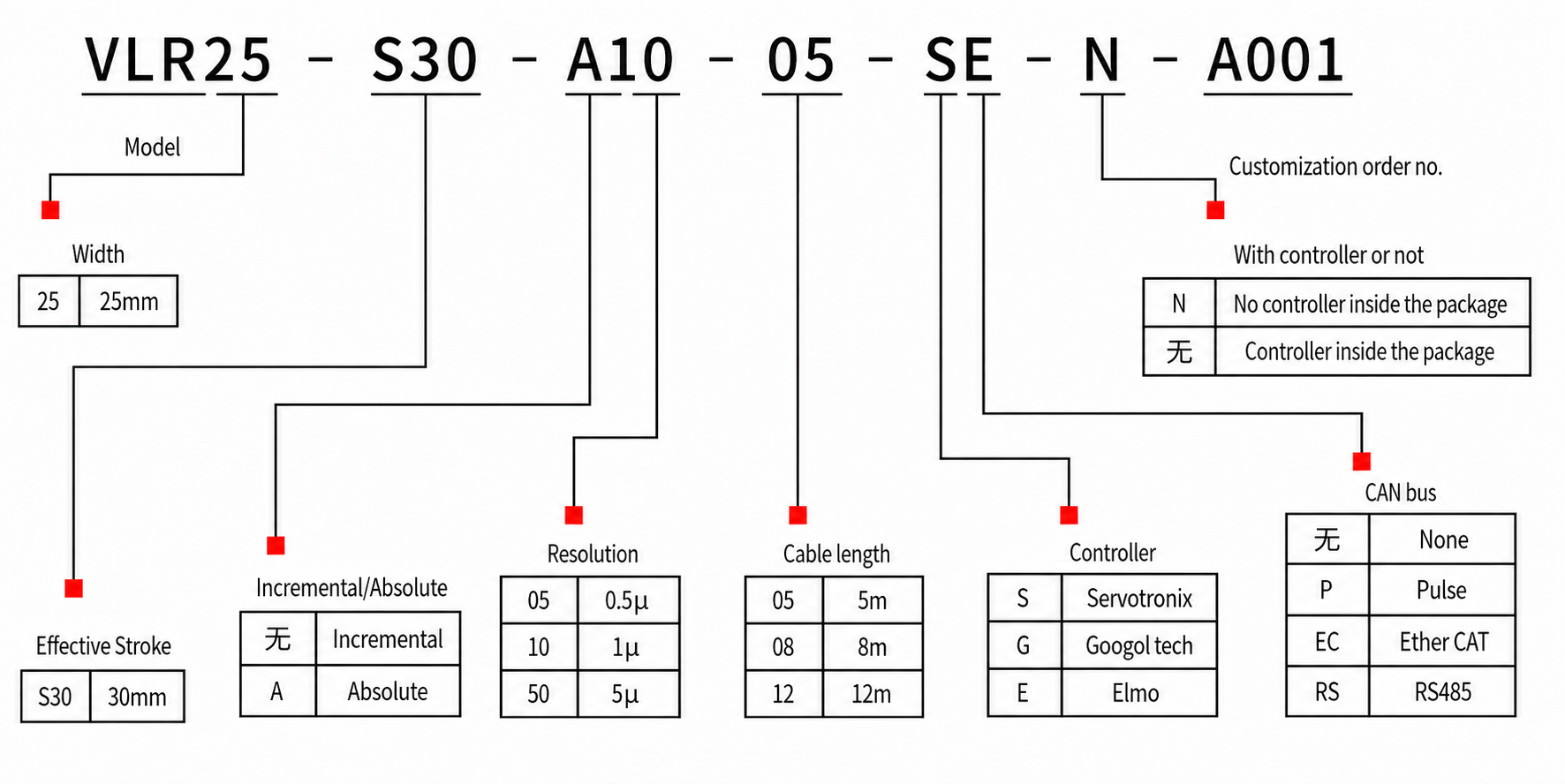

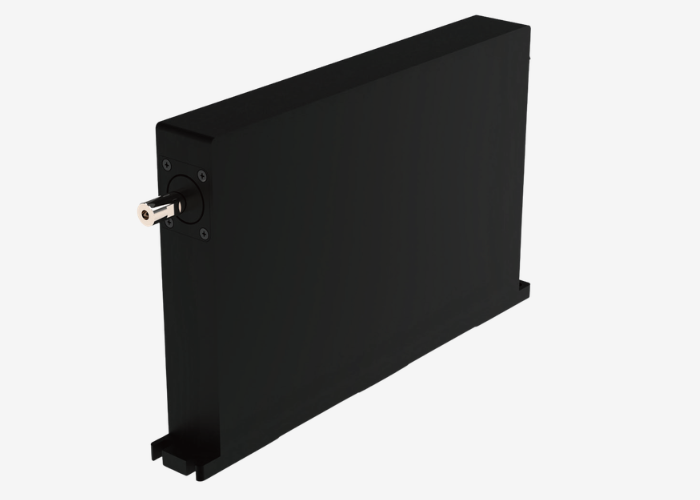

VLR25-S30 series
VLR25-S30 series specification
| Specification | Operating Voltage (V) | 48 | |
|---|---|---|---|
| Effective Stroke (mm) | 30 | ||
| Maximum Thrust (N) | 36 | ||
| Continuous Thrust (N) | 16 | ||
| Peak Current (A) | 3.0 | ||
| Continuous Current (A) | 1.3 | ||
| Force Constant (N/A) | 12.3 | ||
| Power Control Range (%) | 50 - 800 | ||
| Power Control Accuracy (%) | 50-200, ±10; 200-800 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 76 | ||
| Rotation Resolution (°) | Incremental: 17Bit | ||
| Weight of Moving Object (g) | 135 | ||
| Total Weight (g) | 545 | ||
| Size (mm) | 180 × 120 × 25 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

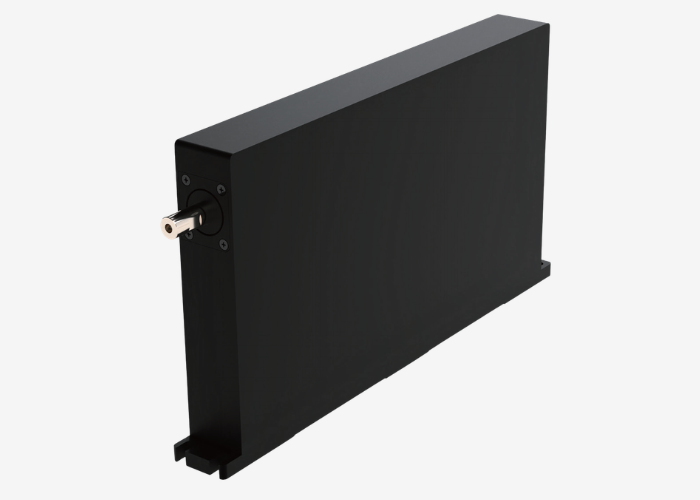

VLR25-S45 series

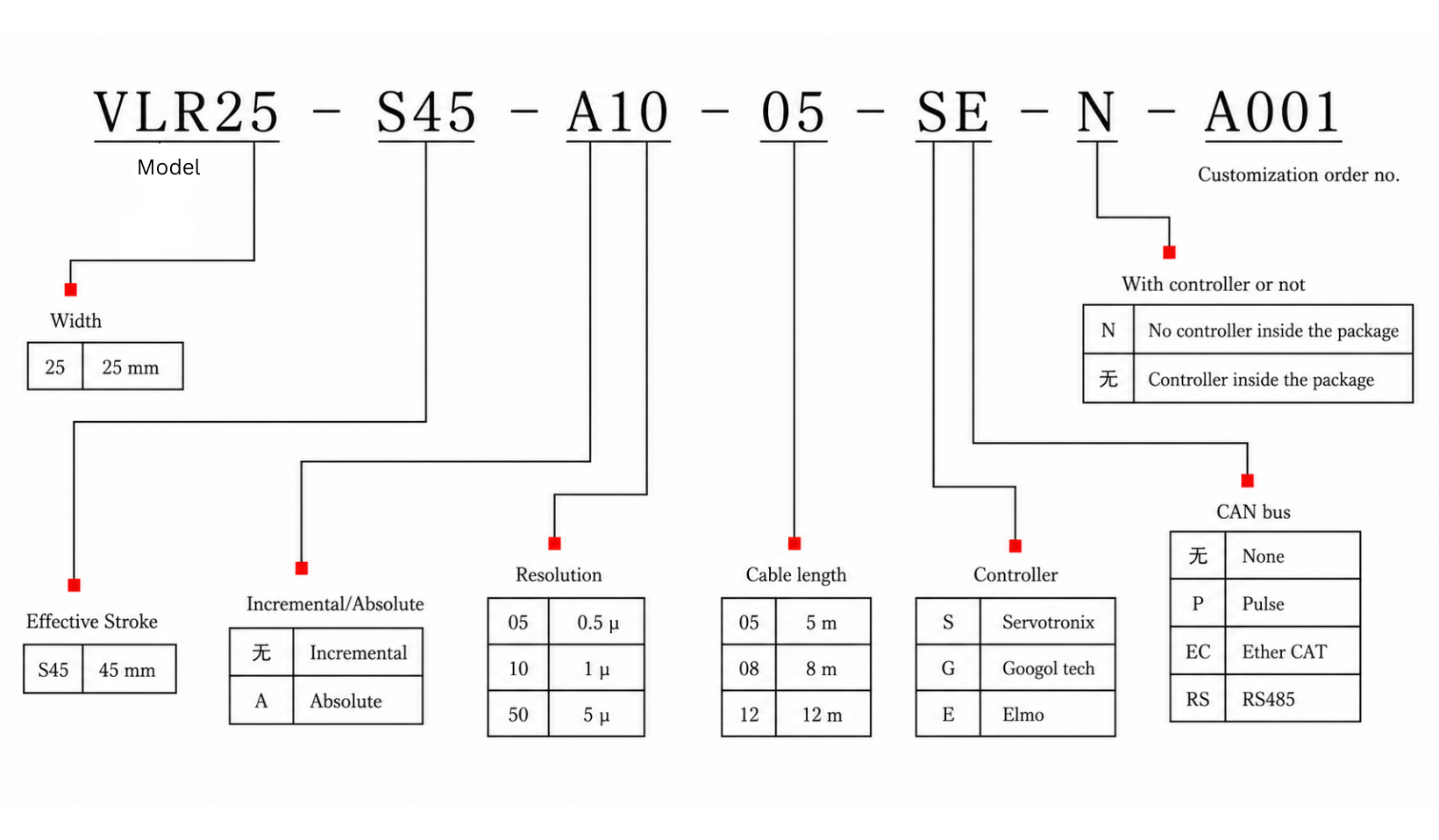

VLR25-S45 series specification
| Specification | Operating Voltage (V) | 48 | |
|---|---|---|---|
| Effective Stroke (mm) | 45 | ||
| Maximum Thrust (N) | 36 | ||
| Continuous Thrust (N) | 16 | ||
| Peak Current (A) | 3.0 | ||
| Continuous Current (A) | 1.3 | ||
| Force Constant (N/A) | 12.3 | ||
| Power Control Range (%) | 50 - 800 | ||
| Power Control Accuracy (%) | 50-200, ±10; 200-800 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 135 | ||
| Rotation Resolution (°) | Incremental: 17Bit | ||
| Weight of Moving Object (g) | 225 | ||
| Total Weight (g) | 900 | ||
| Size (mm) | 205 × 120 × 25 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

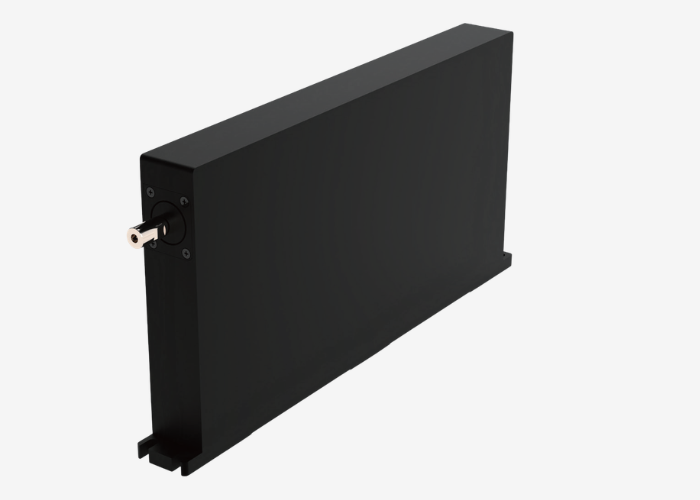

VLR25-S65 series

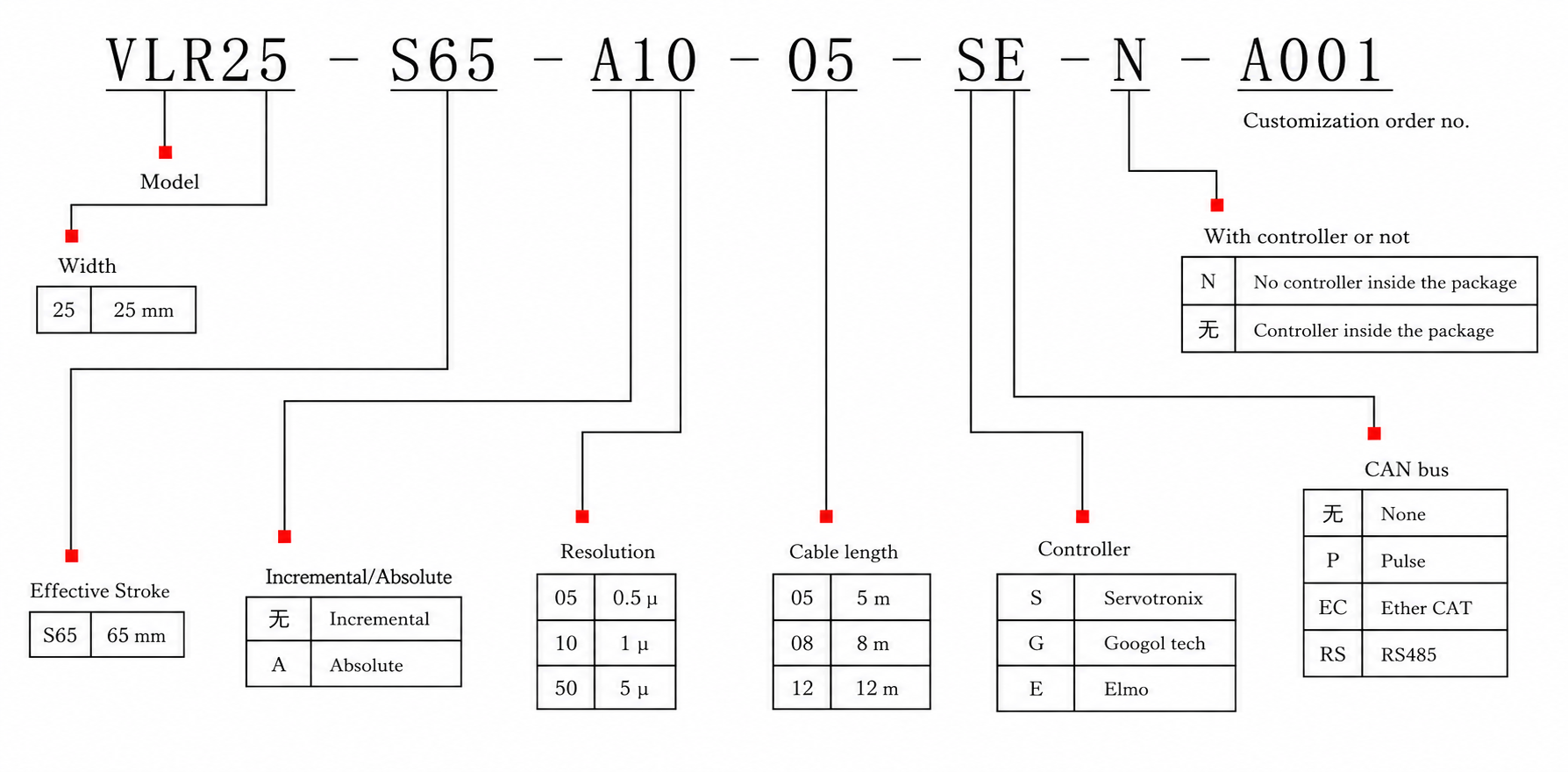

VLR25-S65 series specification
| Specification | Operating Voltage (V) | 48 | |
|---|---|---|---|
| Effective Stroke (mm) | 65 | ||
| Maximum Thrust (N) | 36 | ||
| Continuous Thrust (N) | 16 | ||
| Peak Current (A) | 3.0 | ||
| Continuous Current (A) | 1.3 | ||
| Force Constant (N/A) | 12.3 | ||
| Power Control Range (%) | 50 - 800 | ||
| Power Control Accuracy (%) | 50-200, ±5; 200-800 ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (μm) | ±2 | ||
| Rated Speed (RPM) | 1000 | ||
| Peak Torque (mN·m) | 135 | ||
| Rotation Resolution (°) | Incremental: 17Bit | ||
| Weight of Moving Object (g) | 240 | ||
| Total Weight (g) | 1000 | ||
| Size (mm) | 225 × 120 × 25 | ||
| Operating Temperature (°C) | 0 - 45°C | ||
