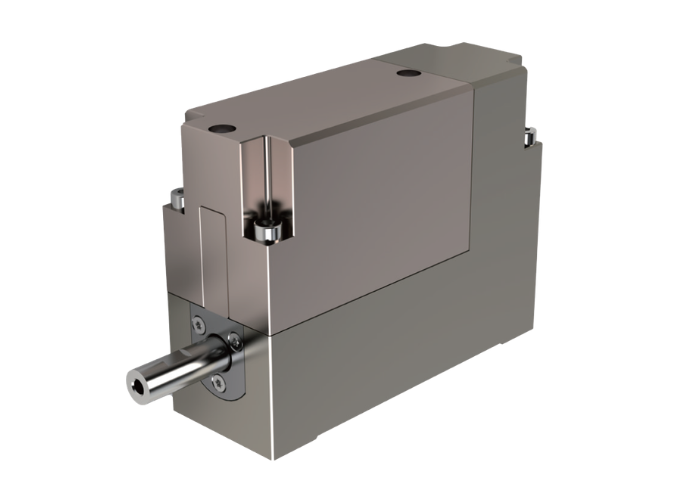

Voice Coil Actuator
Voice Coil Actuators (VL Series) are high-speed linear actuators designed for short stroke, high-frequency, and ultra-precise motion control. These actuators provide smooth, fast, and highly responsive movement, making them ideal for dynamic applications.
Their compact structure and high accuracy make them suitable for modern automation and testing systems.
They are suitable for high-speed, short-stroke operations where precise positioning and consistent force output are essential.
Features
- Ultra-thin and compact design (~20mm thickness)
- High-speed and high-frequency operation (up to 100Hz)
- Long service life (over 100 million cycles)
- High repeatability (±2μm)
- Wide force control range (0.02N – 100N)
- Built-in spring for safety during power failure
- Fast response and high acceleration (up to 35G)
Applications
Mobile screen and button testing, Electronics assembly and pressing, Battery thickness measurement systems, Automotive electronic testing, Precision testing equipment
Industries
3C Electronics Industry, Automotive Industry, Battery & Energy Sector, Semiconductor Industry

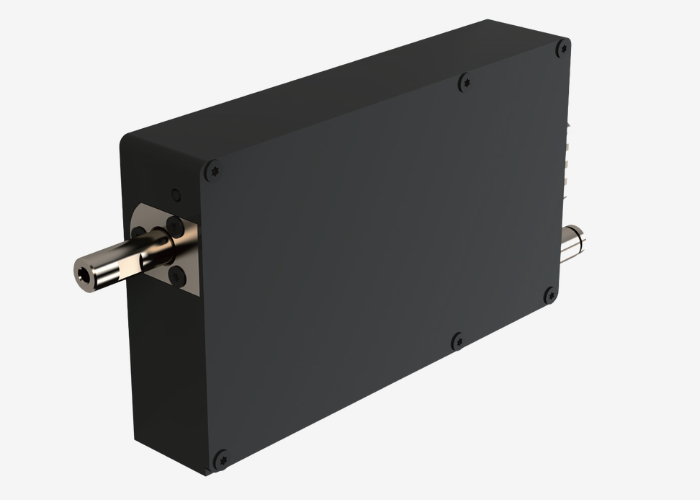

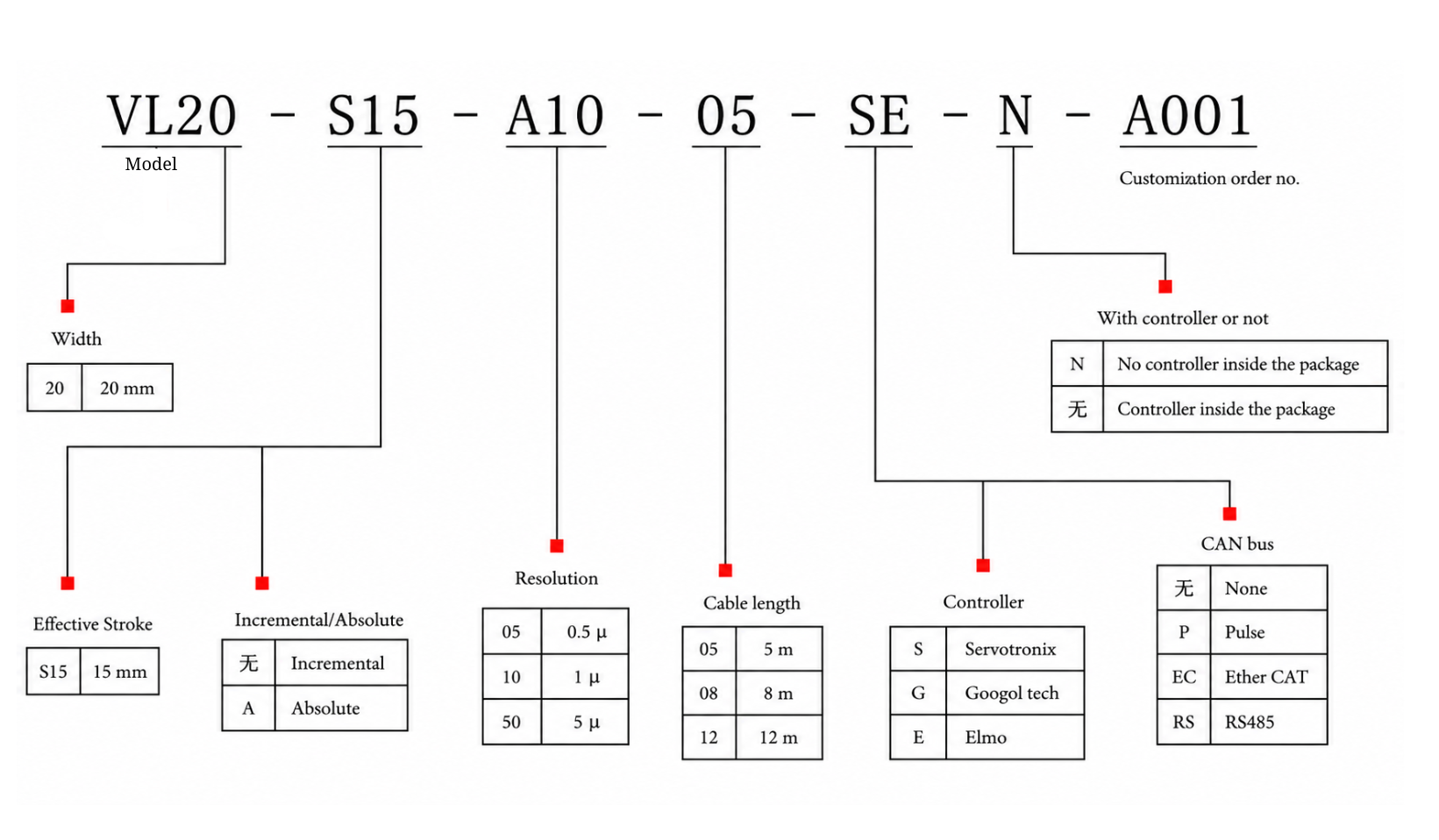

VL20-S15 series
VL20-S15 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 15 | ||
| Maximum Thrust (N) | 9.5 | ||
| Continuous Thrust (N) | 4.2 | ||
| Peak Current (A) | 1.8 | ||
| Persistent Current (A) | 0.8 | ||
| Force Constant (N/A) | 5.3 | ||
| Power Control Accuracy (%) | 20-100, ±5; 100-400, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 45 | ||
| Total Weight (g) | 290 | ||
| Size (mm) | 100 × 58 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

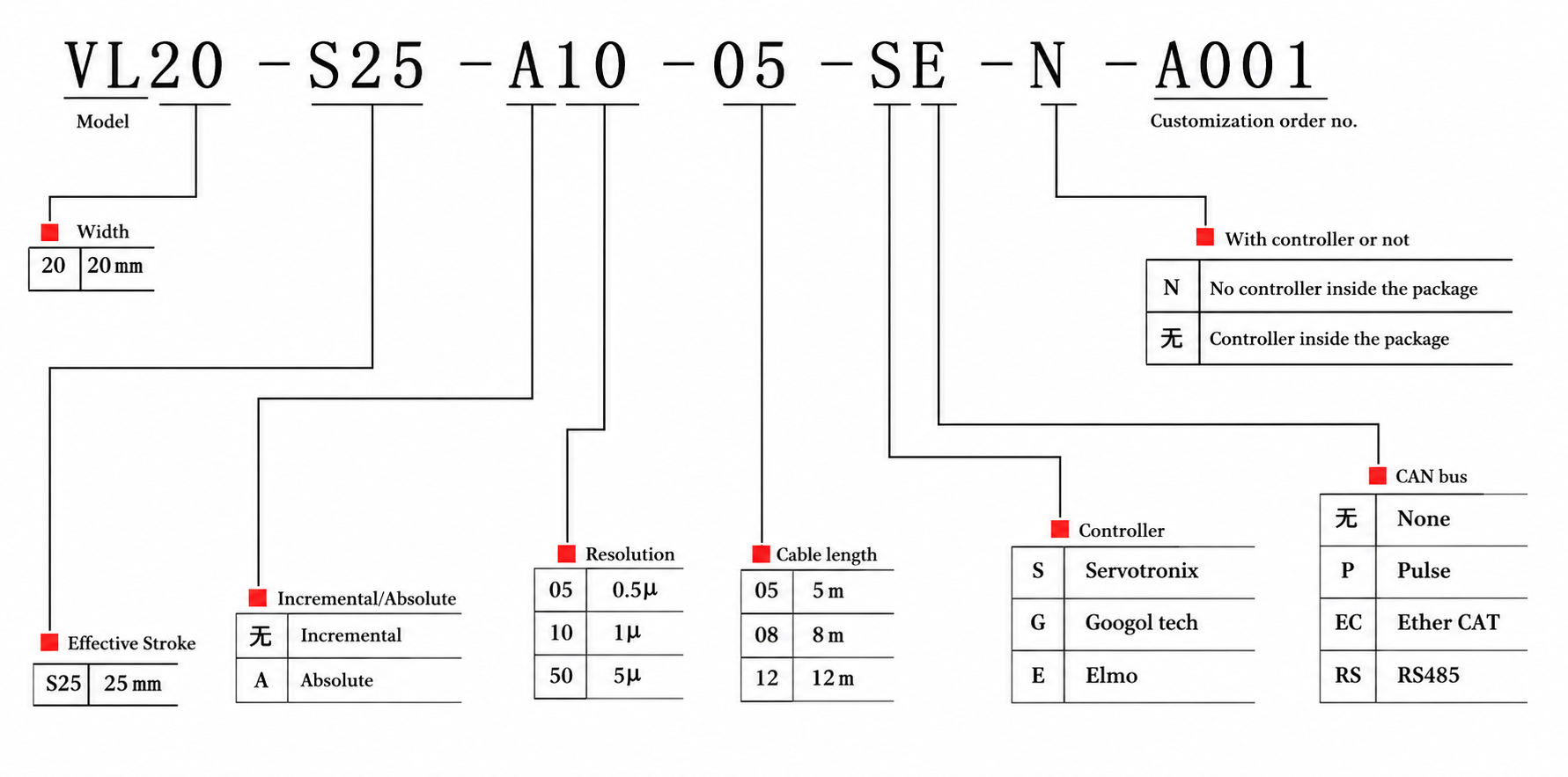

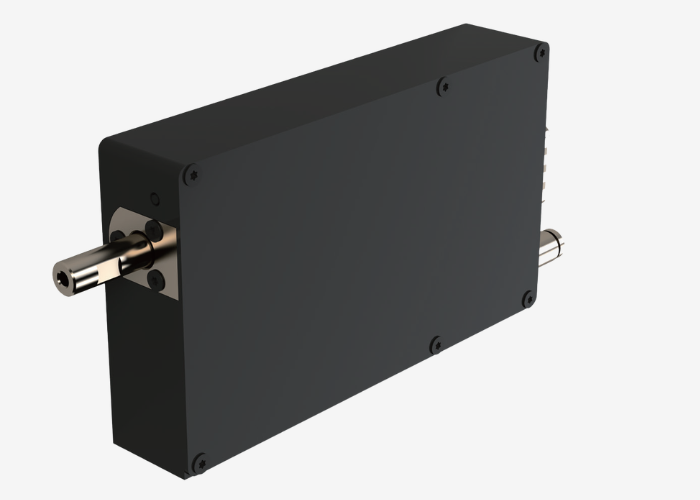

VL20-S25 series
VL20-S25 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 25 | ||
| Maximum Thrust (N) | 13.2 | ||
| Continuous Thrust (N) | 5.8 | ||
| Peak Current (A) | 2 | ||
| Persistent Current (A) | 0.85 | ||
| Force Constant (N/A) | 6.8 | ||
| Power Control Accuracy (g) | 20-100, ±5; 100-400, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 105 | ||
| Total Weight (g) | 628 | ||
| Size (mm) | 160 × 80 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

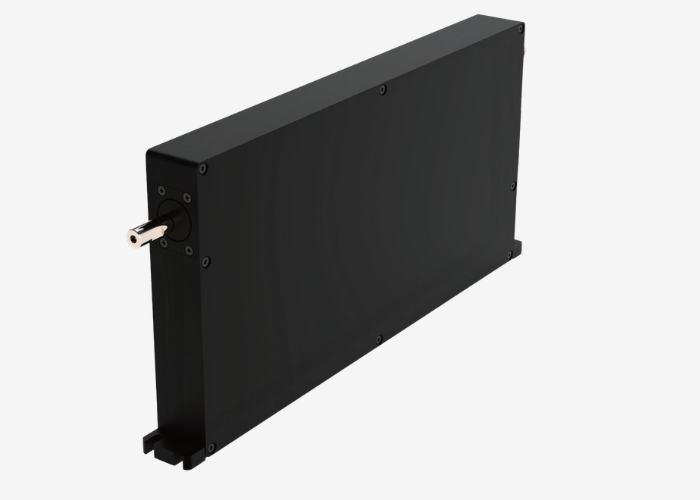

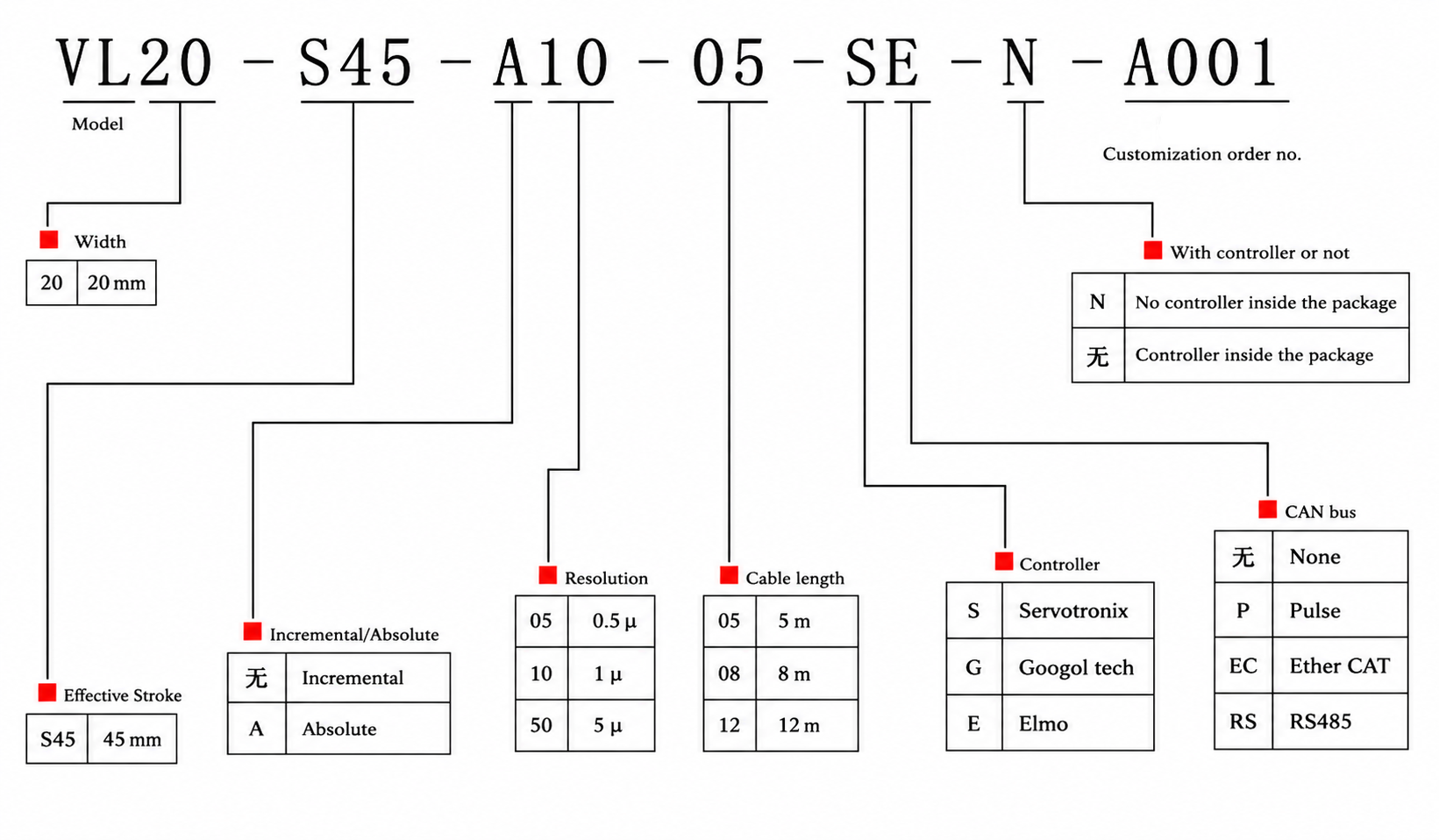

VL20-S45 series
VL20-S45 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 45 | ||
| Maximum Thrust (N) | 28 | ||
| Continuous Thrust (N) | 11.2 | ||
| Peak Current (A) | 3.0 | ||
| Persistent Current (A) | 1.2 | ||
| Force Constant (N/A) | 9.4 | ||
| Open-loop Force Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 110 | ||
| Total Weight (g) | 600 | ||
| Size (mm) | 195 × 100 × 20 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

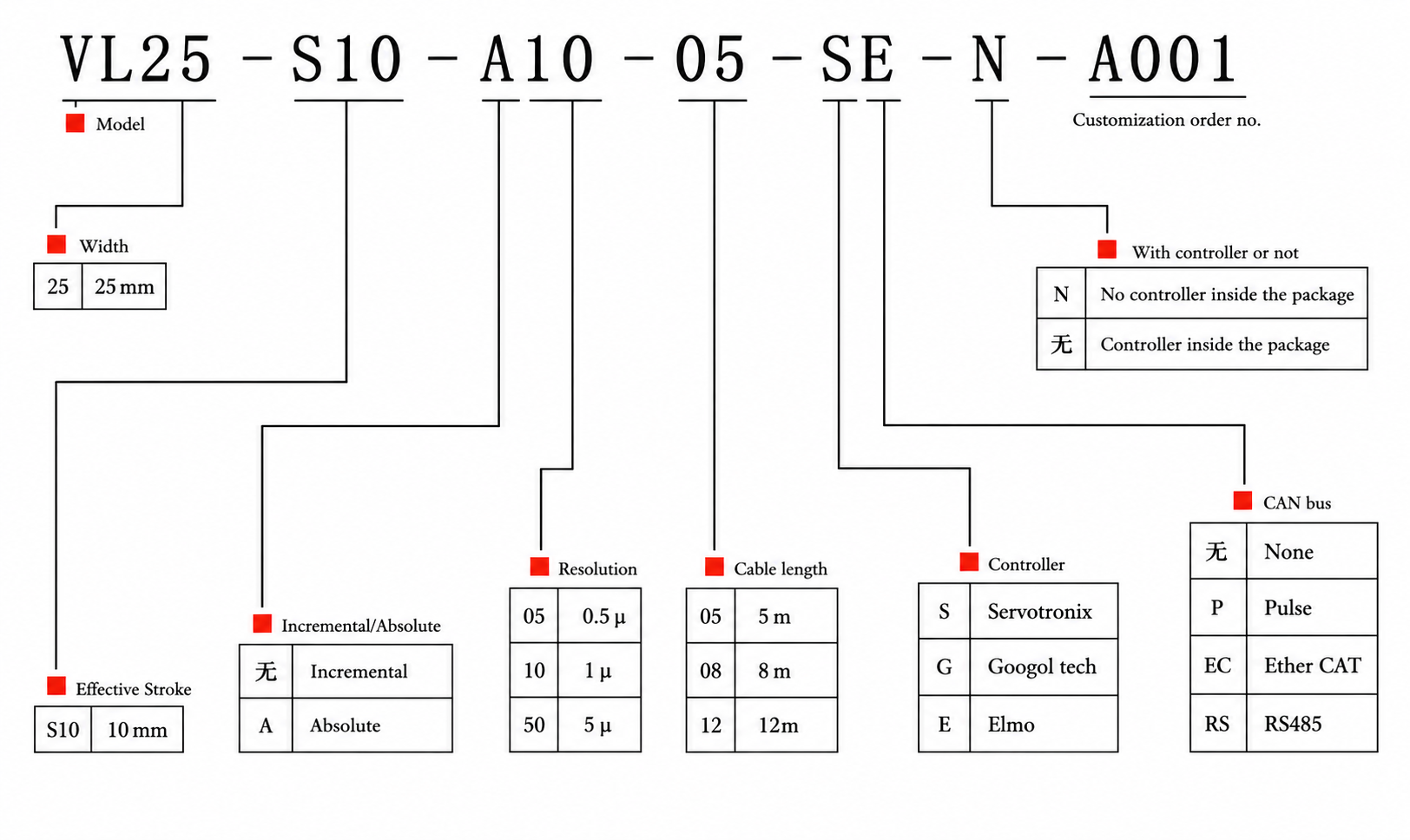

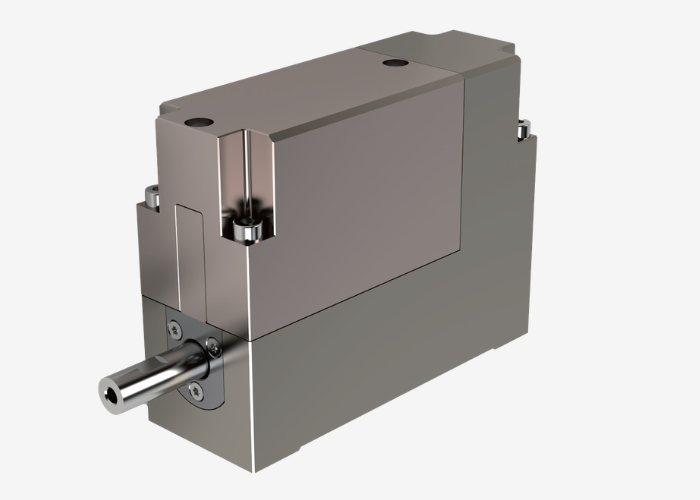

VL25-S10 series
VL25-S10 series
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 10 | ||
| Maximum Thrust (N) | 12.6 | ||
| Continuous Thrust (N) | 5.4 | ||
| Peak Current (A) | 1.5 | ||
| Persistent Current (A) | 0.6 | ||
| Force Constant (N/A) | 9 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 42 | ||
| Total Weight (g) | 345 | ||
| Size (mm) | 70 × 53.6 × 25.4 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

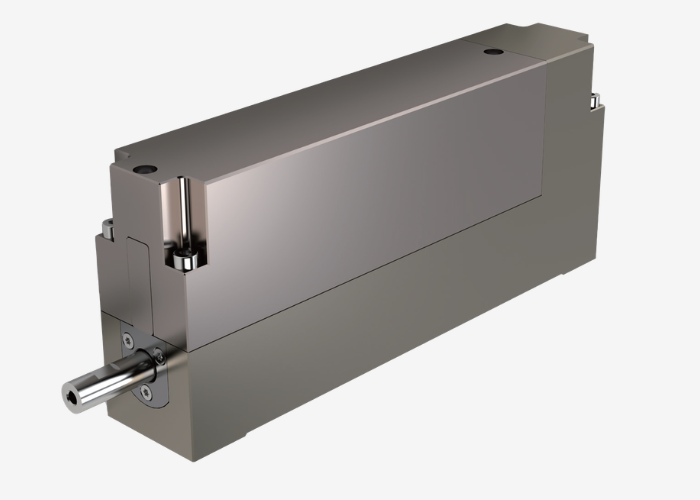

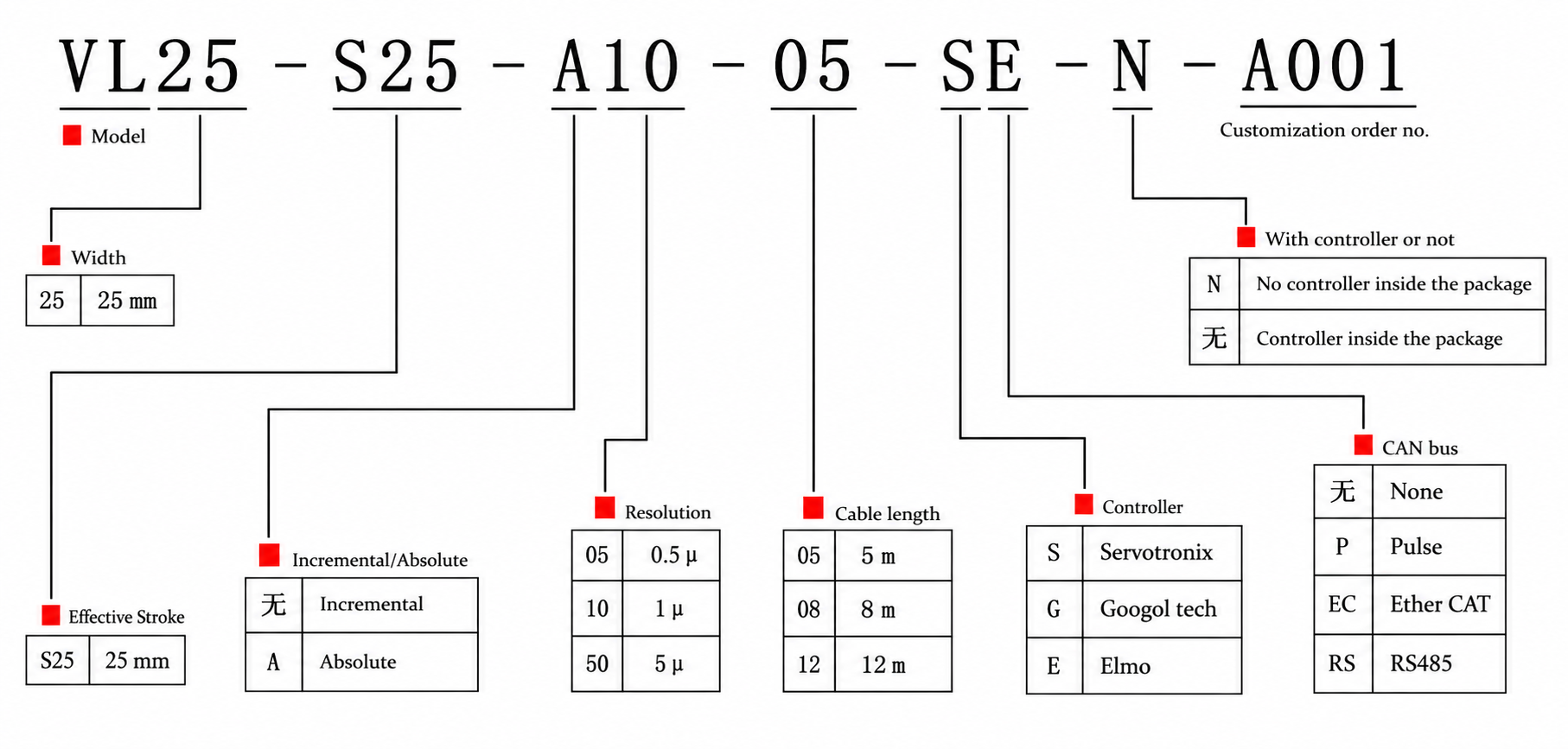

VL25-S25 series
VL25-S25 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 25 | ||
| Maximum Thrust (N) | 18.5 | ||
| Continuous Thrust (N) | 8.2 | ||
| Peak Current (A) | 2.3 | ||
| Persistent Current (A) | 1 | ||
| Force Constant (N/A) | 8.2 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 74 | ||
| Total Weight (g) | 672 | ||
| Size (mm) | 126 × 53.6 × 25.4 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

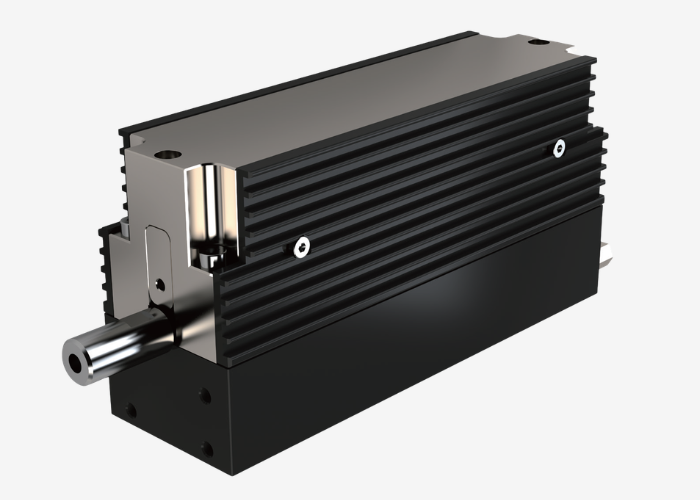

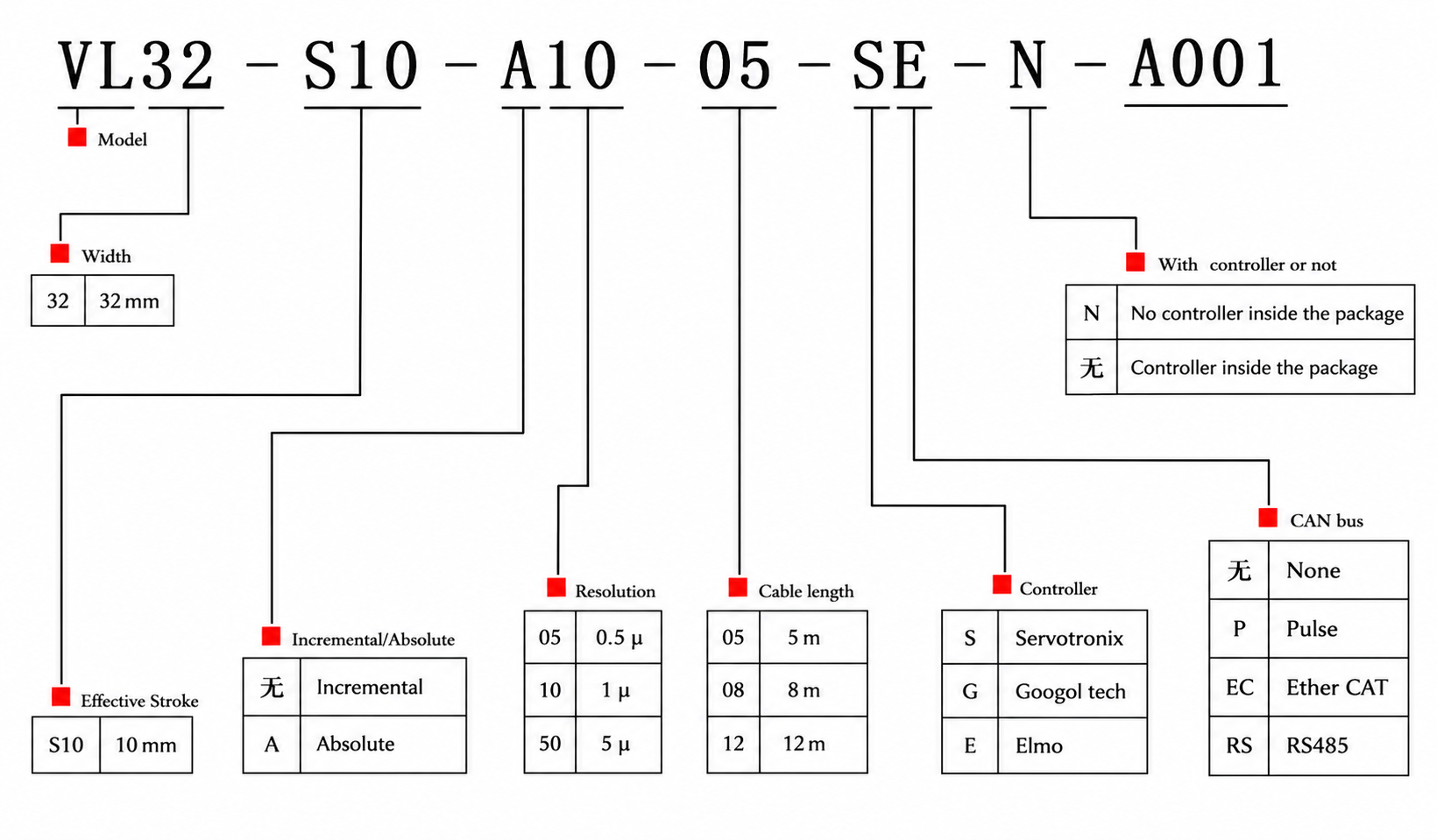

VL32-S10 series
VL32-S10 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 10 | ||
| Maximum Thrust (N) | 30.5 | ||
| Continuous Thrust (N) | 13 | ||
| Peak Current (A) | 2.8 | ||
| Persistent Current (A) | 1.2 | ||
| Force Constant (N/A) | 10.8 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 78 | ||
| Total Weight (g) | 628 | ||
| Size (mm) | 103.5 × 51.6 × 32 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

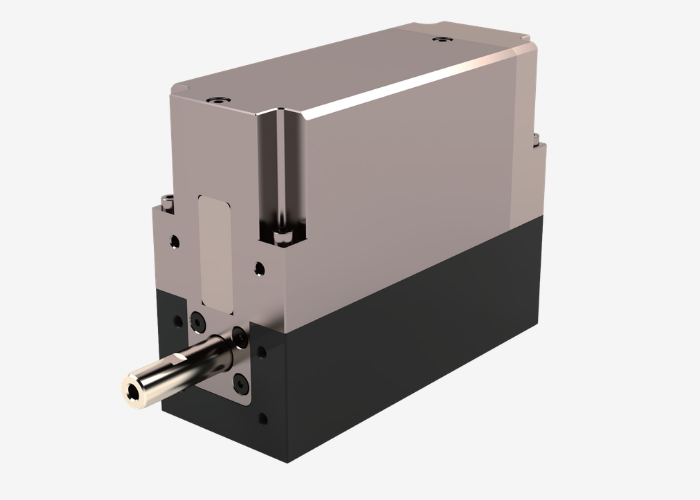

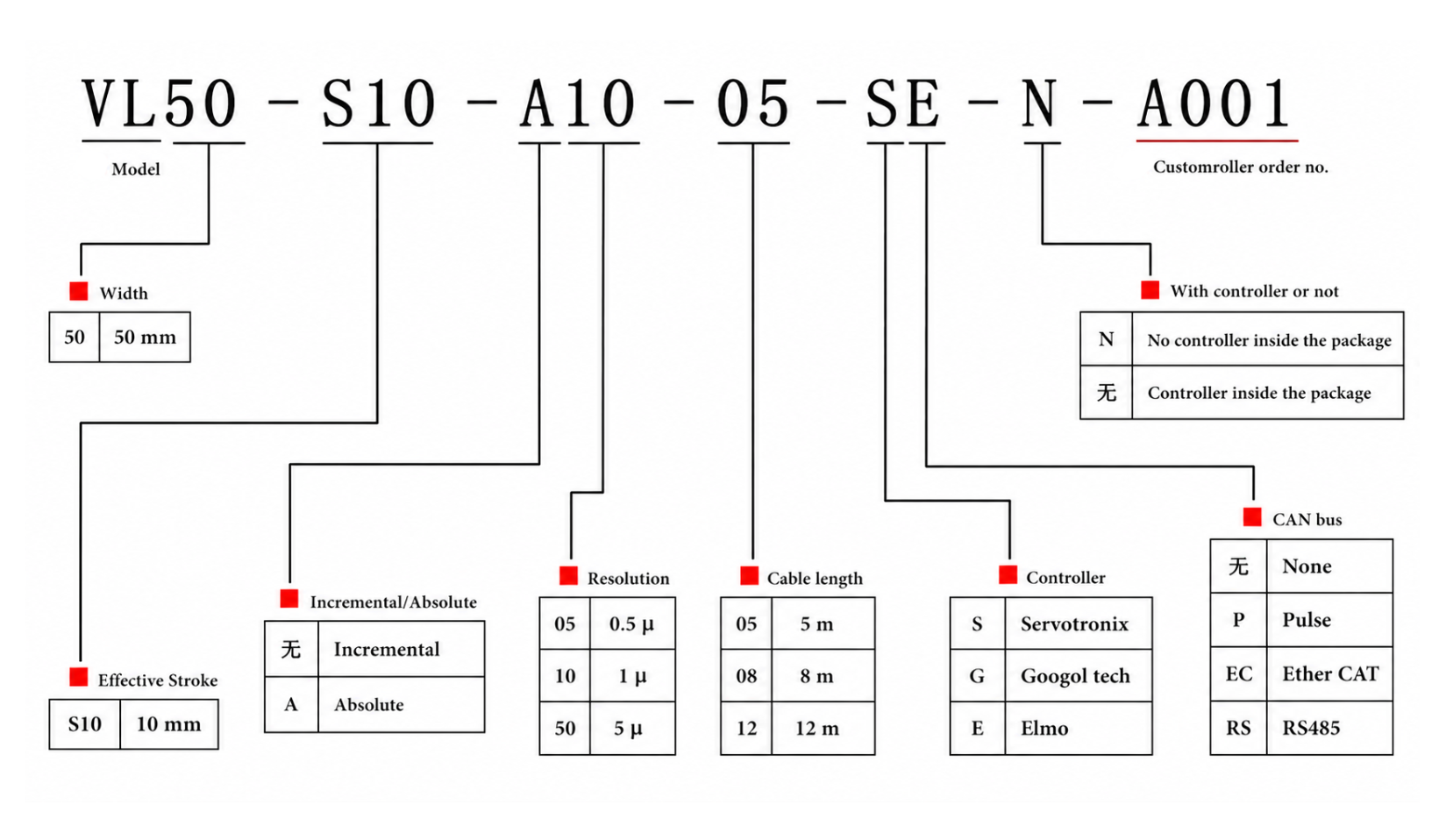

VL50-S10 series
VL50-S10 series specification
| Specification | Operating Voltage (V) | 24 | |
|---|---|---|---|
| Effective Stroke (mm) | 10 | ||
| Maximum Thrust (N) | 30.5 | ||
| Continuous Thrust (N) | 13 | ||
| Peak Current (A) | 2.8 | ||
| Persistent Current (A) | 1.2 | ||
| Force Constant (N/A) | 10.8 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 78 | ||
| Total Weight (g) | 628 | ||
| Size (mm) | 103.5 × 51.6 × 32 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

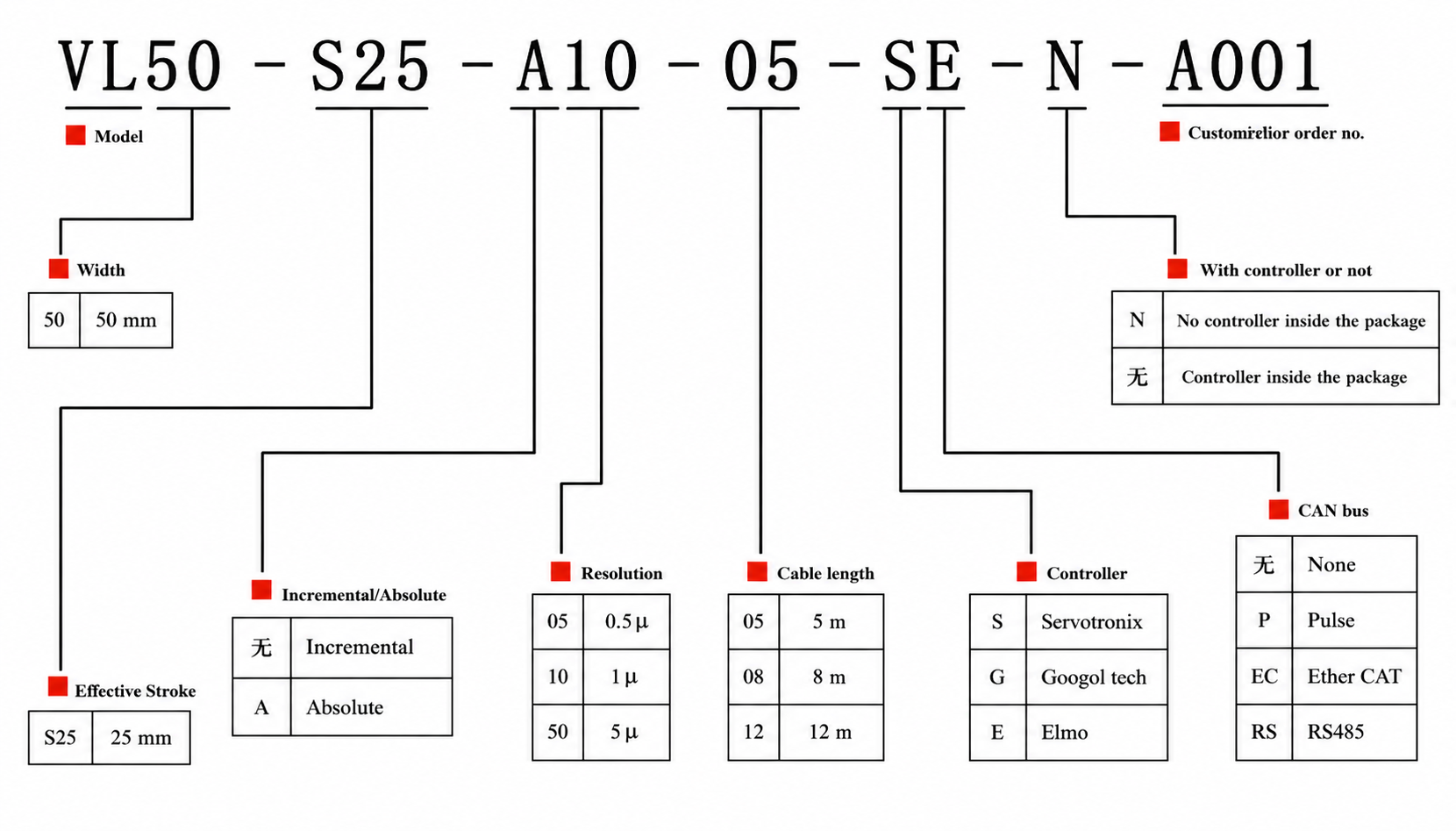

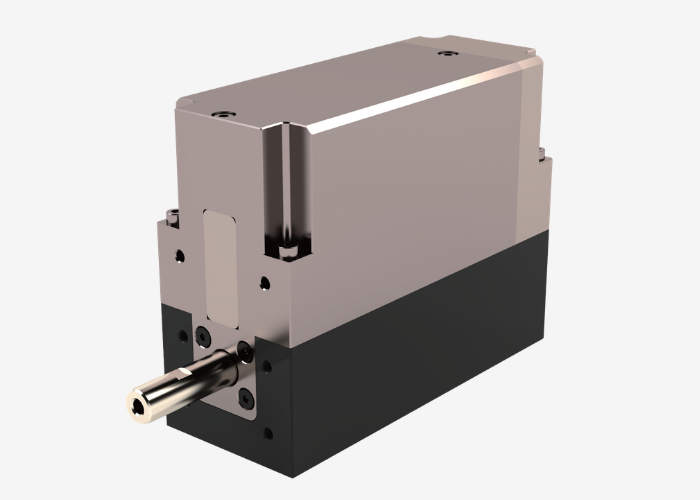

VL50-S25 series
VL50-S25 series specification
| Specification | Operating Voltage (V) | 48 | |
|---|---|---|---|
| Effective Stroke (mm) | 25 | ||
| Maximum Thrust (N) | 48 | ||
| Continuous Thrust (N) | 19.2 | ||
| Peak Current (A) | 1.8 | ||
| Persistent Current (A) | 0.72 | ||
| Force Constant (N/A) | 26.8 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 195 | ||
| Total Weight (g) | 2000 | ||
| Size (mm) | 125 × 96 × 50 | ||
| Operating Temperature (°C) | 0 - 45°C | ||

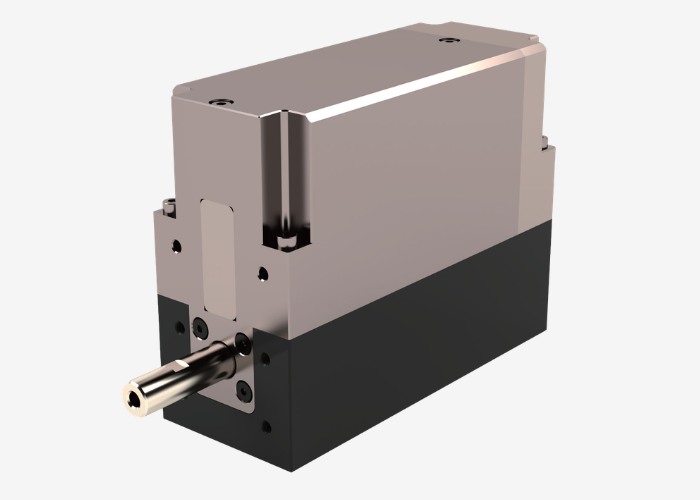

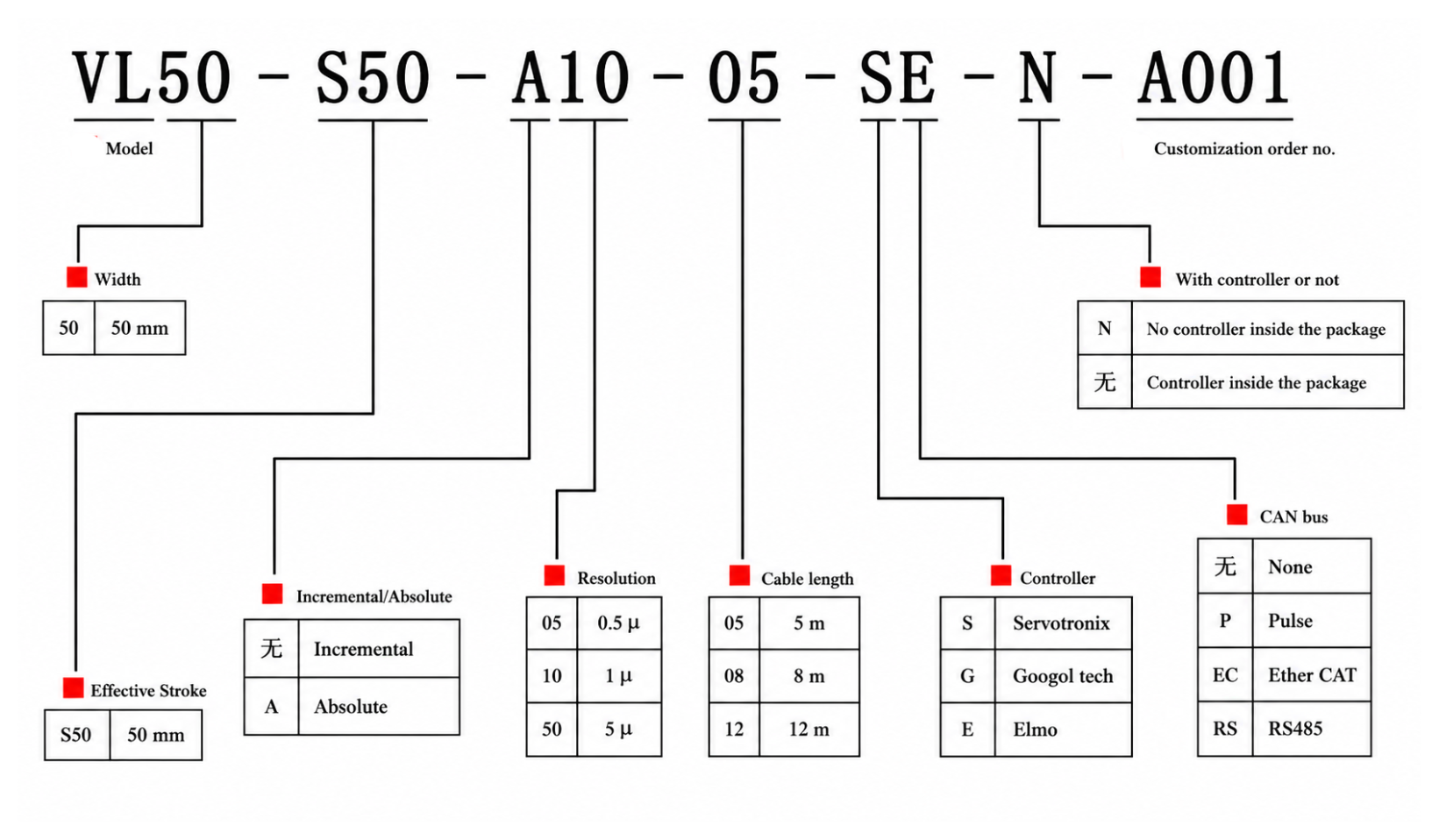

VL50-S50 series
VL50-S50 series specification
| Specification | Operating Voltage (V) | 48 | |
|---|---|---|---|
| Effective Stroke (mm) | 50 | ||
| Maximum Thrust (N) | 40.5 | ||
| Continuous Thrust (N) | 15.8 | ||
| Peak Current (A) | 1.8 | ||
| Persistent Current (A) | 0.72 | ||
| Force Constant (N/A) | 22.5 | ||
| Power Control Accuracy (g) | 20–100, ±5; 100 – continuous thrust, ±5% | ||
| Linear Resolution (μm) | 0.5 / 1 / 5 (Optional) | ||
| Repeatability (count) | ±2 | ||
| Weight of Moving Object (g) | 195 | ||
| Total Weight (g) | 2250 | ||
| Size (mm) | 125 × 96 × 50 | ||
| Operating Temperature (°C) | 0 - 45°C | ||
